01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts

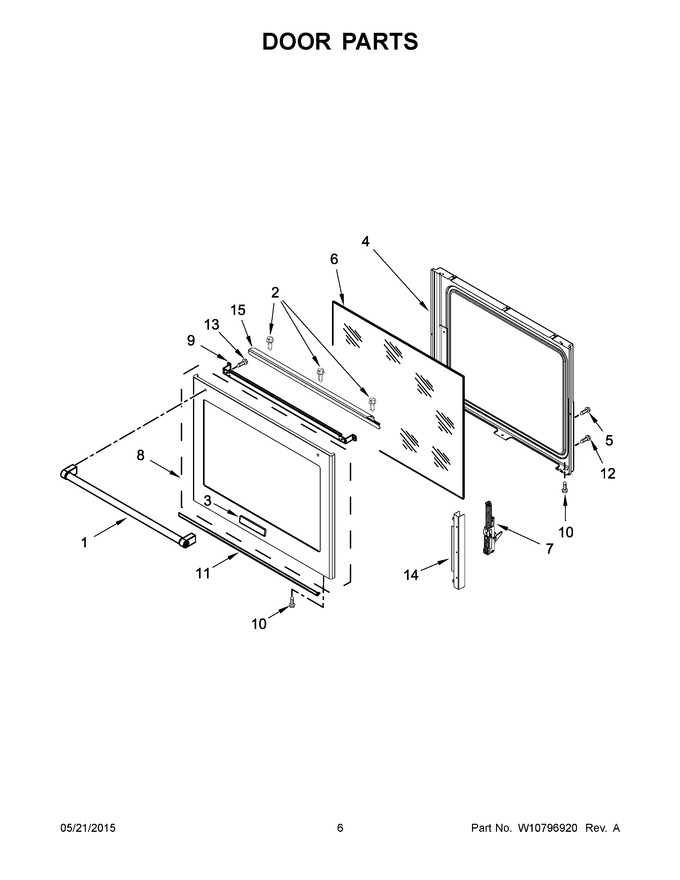

04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 213.73 | |||||
| 2 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 3 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 4 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 346.19 | |||||
| 7 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 8 | WPW10634273 | Panel, Door (white) (Replaces: W10634273) |
|
$ 526.59 | |||||
| 9 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 10 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 11 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.90 | ||||
| 14 | W10541883 | Hinge, Support Rail |
|
$ 40.41 | |||||
| 15 | W10613790 | Scoop, Door (white) |
|
$ 125.60 | |||||
| 15A | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 125.70 | ||||
| 15B | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 110.71 | |||||
| 8A | W10634272 | Panel, Door (black) |
|
- | |||||
| 8B | WPW10634271 | Panel, Door (stainless) (Replaces: W10634271) |
|
Immediately | $ 472.83 |
