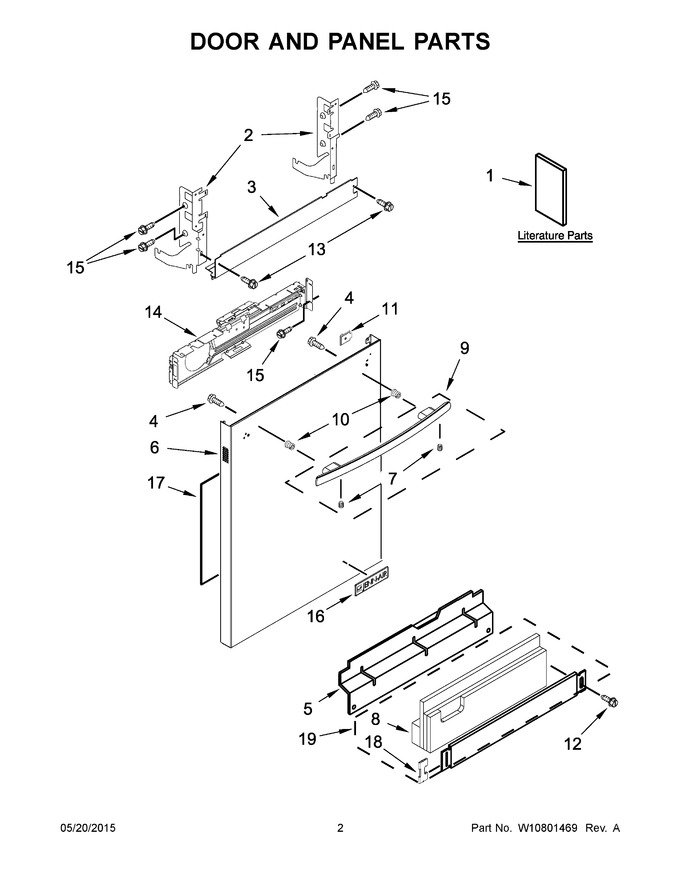

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10741197 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 128.15 | ||||
| 3 | W10850371 | Barrier, Vapor (Replaces: W10321448) |
|
Immediately | $ 29.59 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10195777) |
|
Immediately | $ 38.03 | ||||
| 6 | W10914559 | Panel, Front (includes 4, 10, 11 & 16) (stainless) (Replaces: W10665707) |
|
$ 404.30 | |||||
| 7 | W10276608 | Screw, Set |
|
$ 42.06 | |||||
| 8 | W10831329 | Insulation, Toe Panel (Replaces: W10073540) |
|
Immediately | $ 38.97 | ||||
| 9 | W10709335 | Handle Assembly (stainless) |
|
$ 173.89 | |||||
| 10 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 17.40 | ||||
| 11 | W10319007 | Light, Pipe |
|
$ 64.80 | |||||
| 12 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 7.36 | ||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 14 | WPW10350242 | Bracket, Control (Replaces: W10350242) |
|
$ 79.49 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 7.43 | ||||
| 16 | WPW10214168 | Nameplate (stainless) (Replaces: W10214168) |
|
$ 77.36 | |||||
| 17 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 86.61 | |||||
| 18 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 10.09 | |||||
| 19 | W10871196 | Toe Panel (black) (Replaces: W10205336) |
|
$ 156.64 | |||||
| 1A | W10665625 | Energy Guide |
|
- | |||||
| 1B | W10665639 | Use & Care Guide |
|
- | |||||
| 1C | W10750900 | Tech Sheet, English |
|
- | |||||
| 1D | W10754472 | Tech Sheet, French |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 128.02 |
