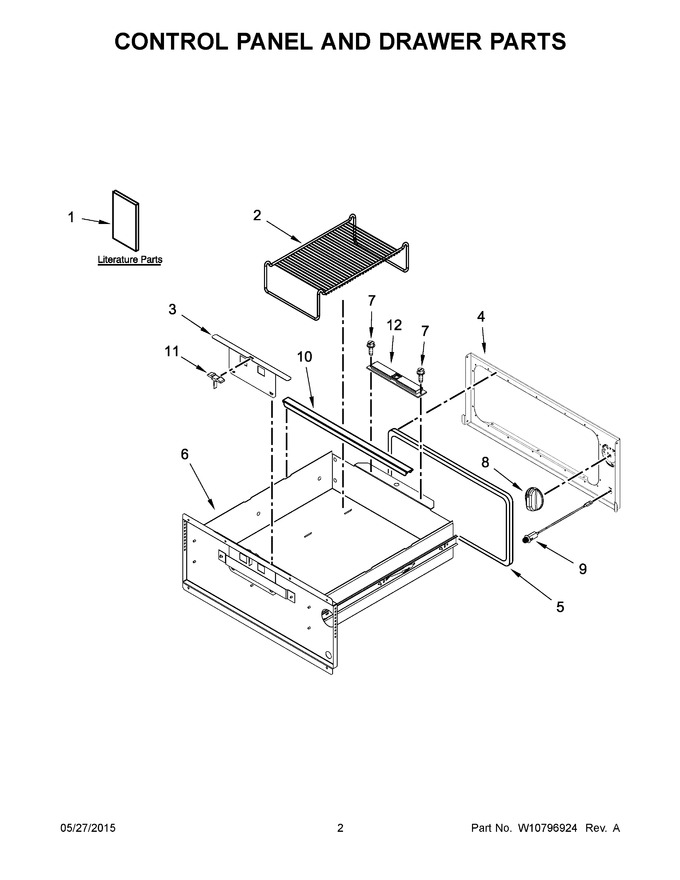

02 - Control Panel And Drawer Parts
03 - Internal Warming Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10736617 | Guide, Use & Care |
|
- | |||||
| 2 | 8273277 | Rack, Warming Drawer |
|
$ 99.80 | |||||
| 3 | W10162376 | Slide, Vent |
|
$ 96.82 | |||||
| 4 | W10732704 | Panel, Front |
|
- | |||||
| 5 | W10164997 | Gasket, Drawer |
|
- | |||||
| 6 | WP9763645 | Assembly, Drawer (Replaces: 9763645) |
|
$ 422.23 | |||||
| 7 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 8 | W10274390 | Knob, Thermostat |
|
$ 54.63 | |||||
| 9 | W10489562 | Light, Indicator |
|
$ 91.92 | |||||
| 10 | W10409137 | Rail, Pan |
|
$ 80.55 | |||||
| 11 | 9763125 | Grip, Vent |
|
$ 72.07 | |||||
| 12 | W10035910 | Magnet |
|
$ 181.67 | |||||
| 1A | W10064720 | Sheet, Tech |
|
- | |||||
| 1B | W10736619 | Instructions, Installation |
|
- |
