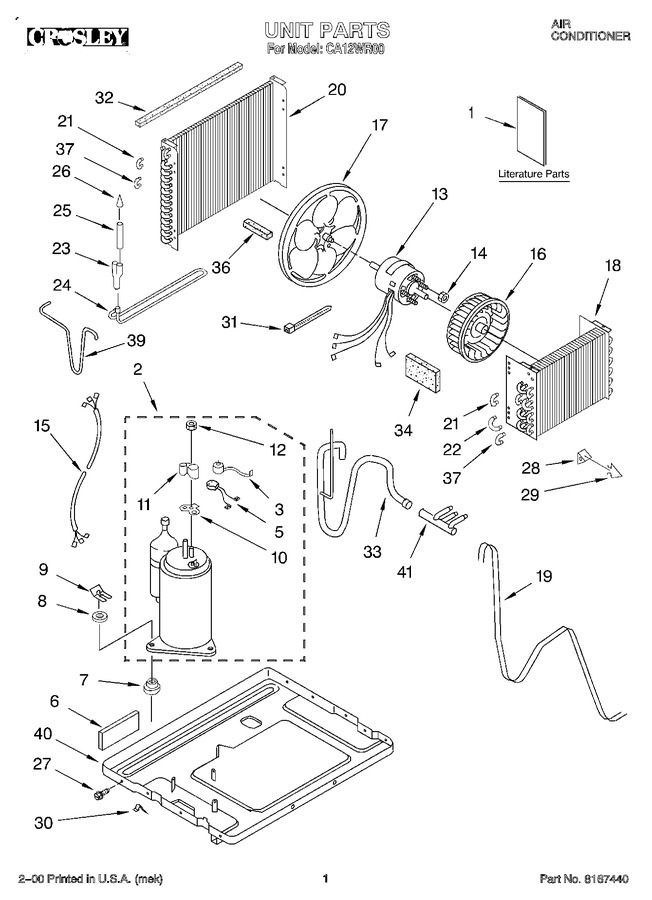

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8031275		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8011132		Literature Parts (use & Care Guide)		Appelez-nous	-
2	1182157		Compressor		Appelez-nous	-
3	1182158		Overload		Appelez-nous	-
5	1182829		Ptc, Start Device		Appelez-nous	-
6	1162616		Seal		Appelez-nous	-
7	950212		Grommet		Appelez-nous	-
8	8011418		Washer, Nylon		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	1168449		Gasket, Terminal Cover		Appelez-nous	-
11	1182200		Cover, Terminal		Appelez-nous	-
12	1168451		Nut, Hex		Appelez-nous	-
13	1183433		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps   (Replaces: 488130)				$ 6.59
15	1183937		Wiring Harness, Compressor		Appelez-nous	-
16	1158443		Wheel, Blower		Appelez-nous	-
17	1156979		Blade, Fan				$ 61.53
18	8031236		Evaporator		Appelez-nous	-
19	8031487		Tube, Restrictor		Appelez-nous	-
20	8031226		Condenser				$ 213.98
21	8031222		Bend, Return Evaporator (5) Condenser (1)		Appelez-nous	-
22	8031224		Bend, Return (5)		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	8031238		Tube, Wet Loop		Appelez-nous	-
25	950816		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	488624		Screw, 8-15 X .375		Appelez-nous	-
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	471088		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	WP854334		Seal, Condenser Top   (Replaces: 949090)				$ 12.55
33	8031521		Tube, Suction		Appelez-nous	-
34	1165440		Insulation, Suction Tube		Appelez-nous	-
36	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
37	8031223		Bend, Return Evaporator (5) Condenser (15)		Appelez-nous	-
39	8031522		Tube, Discharge		Appelez-nous	-
40	8031100		Base		Appelez-nous	-
41	8031259		Tube, Flow Divider		Appelez-nous	-
