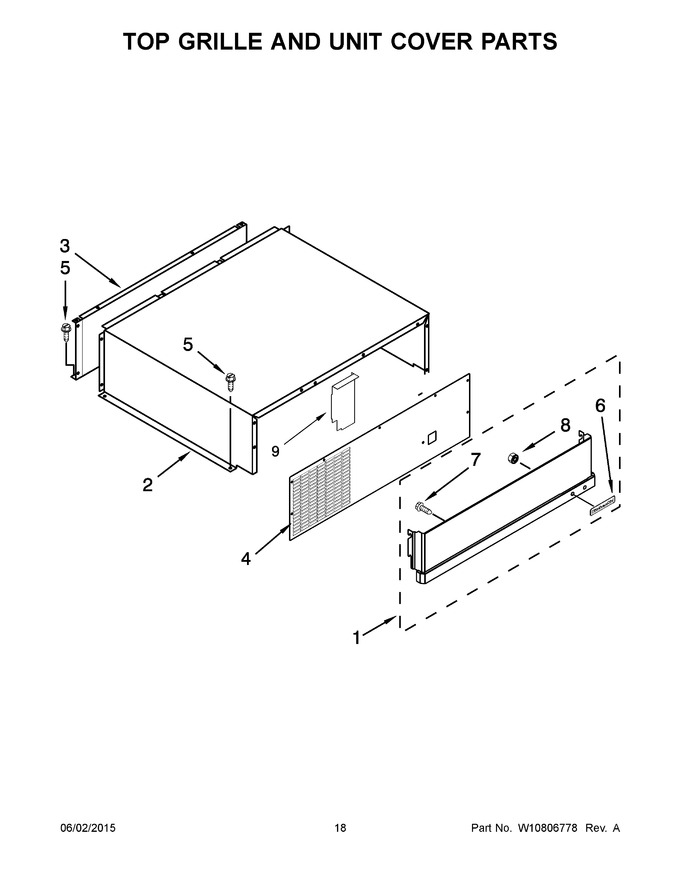

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10321107		Assembly, Top Grille				$ 278.72
2	W11735285		Cover, Unit   (Replaces: W10545068)			Immediately	$ 185.37
3	2256466		Panel, Unit Back				$ 294.50
4	W10694109		Cover, Unit Front				$ 170.64
5	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
6	2317923S		Nameplate (stainless)		Appelez-nous	-
7	WP489399		Screw   (Replaces: 489399)				$ 6.57
8	WP2004333		Nut   (Replaces: 2004333)				$ 10.12
9	W10645086		Divider, Unit Air				$ 92.52

    View Diagram in Separate Window       Print Part List
