View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

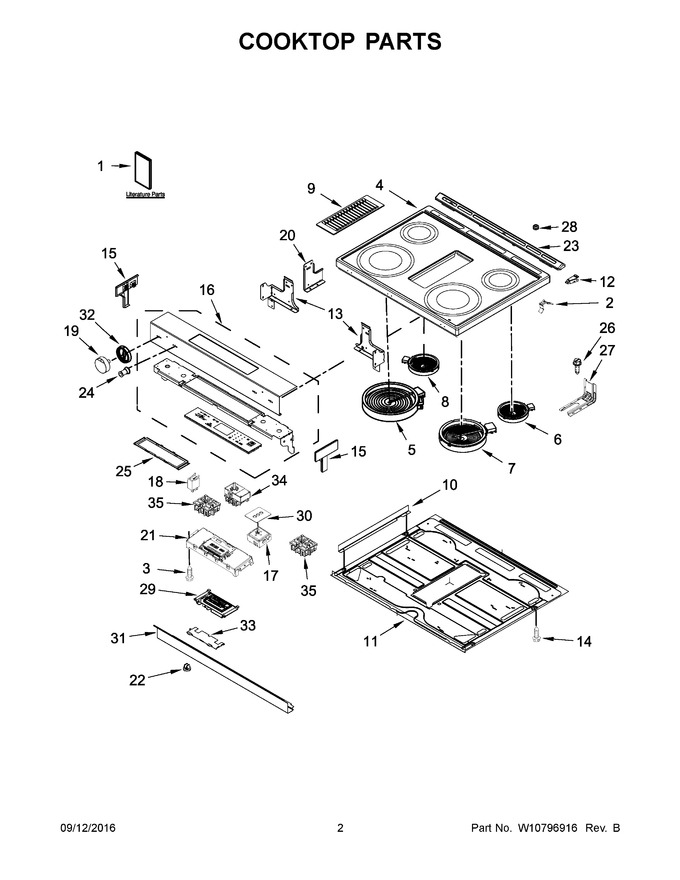

02 - Cooktop Parts
03 - Chassis Parts
04 - Blower Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10787365 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10813359 | Cooktop (stainless) (Replaces: W10669572) |
|
$ 1,081.97 | |||||
| 5 | W11517959 | Element (3000w/1400w Dual) (left Front) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 307.76 | ||||
| 8 | WPW10342780 | Element (1300w Dual) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 151.61 | ||||
| 9 | W11211500 | Air Grill (Replaces: W10575593) |
|
Immediately | $ 223.54 | ||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 70.12 | |||||
| 11 | W10561812 | Pan, Radiant |
|
- | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| 15 | W10555937 | Endcap (stainless (left)) |
|
$ 61.16 | |||||
| 16 | W10915815 | Console (stainless) (Replaces: W10697331) |
|
Immediately | $ 739.76 | ||||
| 17 | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 19 | W10877180 | Knob (stainless (right Rear)) (Replaces: W10823543) |
|
Immediately | $ 74.25 | ||||
| 20 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 21 | W11100515 | Control Mrc2 (Replaces: W10658111) |
|
Immediately | $ 474.88 | ||||
| 22 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 23 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10555923 | Bracket, User Interface |
|
$ 96.69 | |||||
| 26 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 29 | WPW10603096 | Assembly, Display (Replaces: W10603096) |
|
Immediately | $ 236.77 | ||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 31 | W10743276 | Console, Lower Panel (stainless) |
|
$ 78.01 | |||||
| 32 | W10813558 | Bezel (stainless) (Replaces: W10663809) |
|
Immediately | $ 69.19 | ||||
| 33 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 34 | W10857622 | Switch, Infinite (dual) (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 35 | W10917724 | Switch, Infinite (right Front And Left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 15A | W10555940 | Endcap (stainless (right)) |
|
$ 61.16 | |||||
| 19A | W11628652 | Knob (stainless (left Rear)) (Replaces: W10823541) |
|
Immediately | $ 67.32 | ||||
| 19B | W11568640 | Knob (stainless (right Front)) (Replaces: W10823538) |
|
Immediately | $ 63.06 | ||||
| 19C | W10877189 | Knob (stainless (left Front)) (Replaces: W10823530) |
|
Immediately | $ 62.96 | ||||
| 1A | W10750369 | User Instructions |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1G | W10750127 | Wiring Diagram |
|
- | |||||
| 1H | W11643128 | Template, Downdraft (Replaces: W10817089) |
|
$ 12.97 | |||||
| NI | W10813885 | Harness, Main |
|
$ 249.80 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 213.24 | ||||
| NI | W10580264 | Harness, Console |
|
$ 232.03 | |||||
| NI | W11171878 | Harness, Cooktop (Replaces: W10580253) |
|
Immediately | $ 187.16 | ||||
| NI | W10664316 | Clip, Harness |
|
$ 18.87 |
