| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10193489 |
|
Door, Refrigerator |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10323746 |
|
Bin, Gallon Door |
|
|
|
$ 97.42 |
|
|
| 3 |
W11673500 |
 |
Assembly, Hinge (top) (Replaces: W10485980) |
|
|
Immediately |
$ 117.33 |
|
|
| 4 |
W11673500 |
|
Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
|
Immediately |
$ 117.33 |
|
|
| 5 |
W11474472 |
 |
Screw (Replaces: W10162602) |
|
|
Immediately |
$ 7.77 |
|
|
| 6 |
2302878 |
 |
Assembly, Bottom Hinge |
|
|
Immediately |
$ 81.91 |
|
|
| 7 |
2222795 |
 |
Rail, Utility Lid |
|
|
|
$ 75.70 |
|
|
| 8 |
WP2222981 |
 |
Gasket, Utility Bin (Replaces: 2222981) |
|
|
|
$ 192.96 |
|
|
| 9 |
WP2266901 |
 |
Gasket, Door (Replaces: W10694138) |
|
|
|
$ 332.86 |
|
|
| 10 |
W10523738 |
|
Skin, Door (stainless) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
WP2316868 |
 |
Handle, Door (stainless) (Replaces: 2316868) |
|
|
Immediately |
$ 253.29 |
|
|
| 12 |
2309060 |
|
Spacer, Handle Side Door |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10759522 |
 |
Screw (stainless) (Replaces: 488568) |
|
|
|
$ 7.42 |
|
|
| 14 |
WP8281250 |
 |
Screw (stainless) (Replaces: 8281250) |
|
|
|
$ 10.28 |
|
|
| 15 |
2005433 |
|
Spacer, Door Skin (top) |
|
|
|
$ 21.00 |
|
|
| 16 |
WP308544 |
 |
Screw (Replaces: 308544) |
|
|
Immediately |
$ 7.47 |
|
|
| 17 |
W10142296 |
|
Spacer, Hinge Side Door |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP2257333 |
|
Spacer, Door Skin (bottom) (Replaces: 2004933) |
|
|
|
$ 126.83 |
|
|
| 19 |
W10323598 |
|
Bin, Door |
|
|
|
$ 94.31 |
|
|
| 20 |
WPW10323173 |
|
End Cap (left Hand) (Replaces: W10323173) |
|
|
|
$ 7.74 |
|
|
| 21 |
W10127710 |
|
Plate, Handle Door |
|
|
Immediately |
$ 23.35 |
|
|
| 22 |
WPW10323035 |
 |
Bin, Utility Center (Replaces: W10323035) |
|
|
|
$ 76.44 |
|
|
| 23 |
WPW10131132 |
 |
Door, Utility Bin (Replaces: W10131132) |
|
|
|
$ 68.23 |
|
|
| 20A |
WPW10323172 |
|
End Cap (right Hand) (Replaces: W10323172) |
|
|
|
$ 7.74 |
|
|

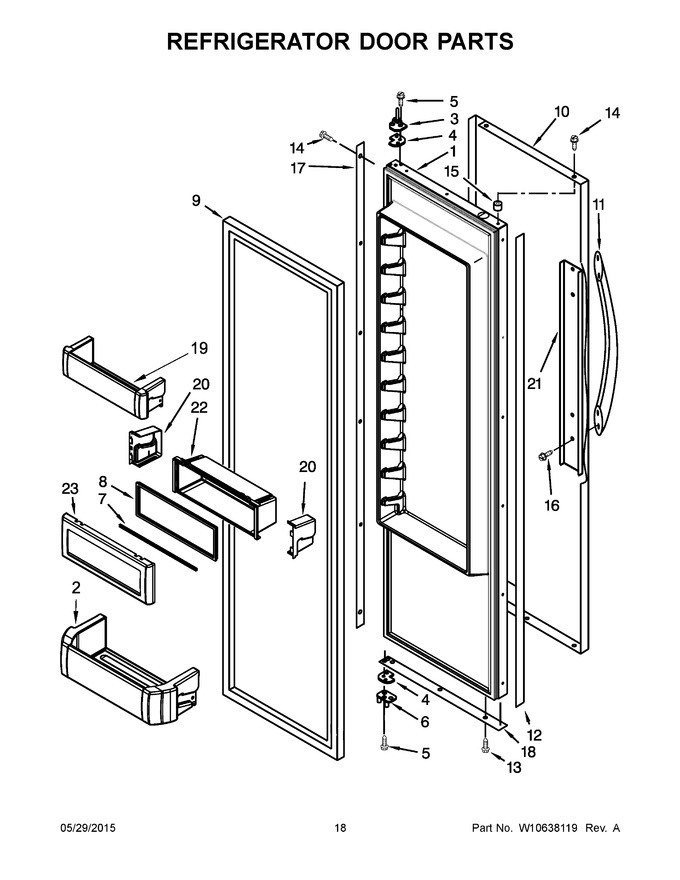

View Diagram in Separate Window
