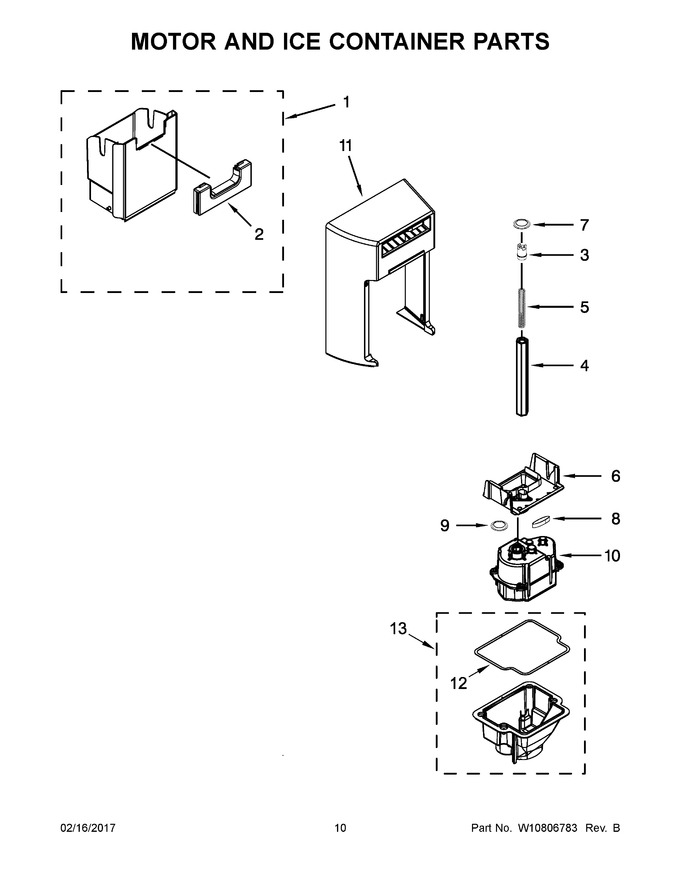

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11347840 | Ice Container (complete) (Replaces: W10774957) |
|
Immediately | $ 326.62 | ||||
| 2 | W11652042 | Assembly, Latch (Replaces: W10693542) |
|
Immediately | $ 22.48 | ||||
| 3 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 36.94 | ||||
| 4 | WPW10258544 | Shaft, Drive (Replaces: W10258544) |
|
Immediately | $ 23.87 | ||||
| 5 | W10852956 | Spring, Coupling (Replaces: W10754509) |
|
Immediately | $ 19.26 | ||||
| 6 | W11573761 | Assembly, Mounting Plate (Replaces: W10293211) |
|
Immediately | $ 56.63 | ||||
| 7 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.31 | ||||
| 8 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 24.91 | |||||
| 9 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 22.82 | |||||
| 10 | W11202789 | Motor, Dispenser (Replaces: W10225313) |
|
Immediately | $ 299.99 | ||||
| 11 | WPW10287594 | Cover, Container (Replaces: W10287594) |
|
$ 206.27 | |||||
| 12 | W10166854 | Gasket |
|
$ 24.02 | |||||
| 13 | W11678273 | Assembly, Motor Box (Replaces: W10765378) |
|
Immediately | $ 69.32 |
