Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10782357 Freezer Door   (Replaces: W10707768) Special Order $ 784.53

2 2317101 Divider, Basket Appelez-nous -
3 W10665413 Mat, Basket (grey) Special Order $ 255.29

4 W10135775 Screw Special Order $ 13.44

5 WP488234 Screw   (Replaces: W10135792) Special Order $ 6.37

6 2258903 Cap, Door Corner Special Order $ 184.02

7 2313999S Trim, Side Door Special Order $ 194.91

8 2313998S Trim, Door (top & Bottom) Special Order $ 261.78

9 W10803138 Gasket, Door (grey)   (Replaces: W10600725) Special Order $ 314.37

10 2309213S Cover, Side Trim Special Order $ 82.75

11 2309033S Cover, Top Trim Special Order $ 77.45

12 WP8281250 Screw (stainless)   (Replaces: 8281250) Special Order $ 10.28

13 W10258183 Assembly, Freezer Basket Appelez-nous -
14 WP2207454 Nut, Hex   (Replaces: 2207454) Special Order $ 10.24

15 W10109030 Screw Special Order $ 13.82


    View Diagram in Separate Window     Print Icon   Print Part List

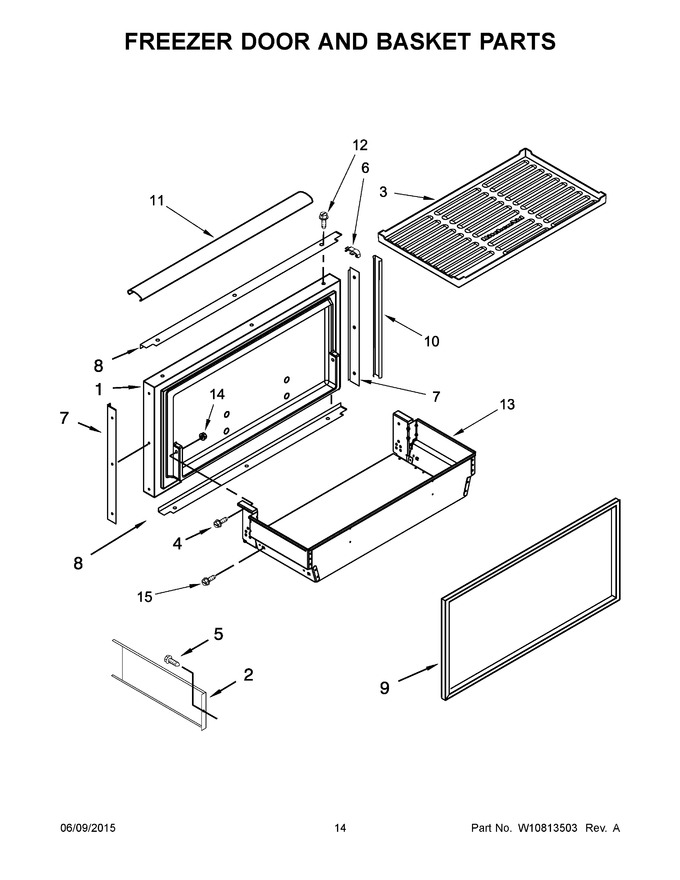

Diagram for KBFN402EPA01
