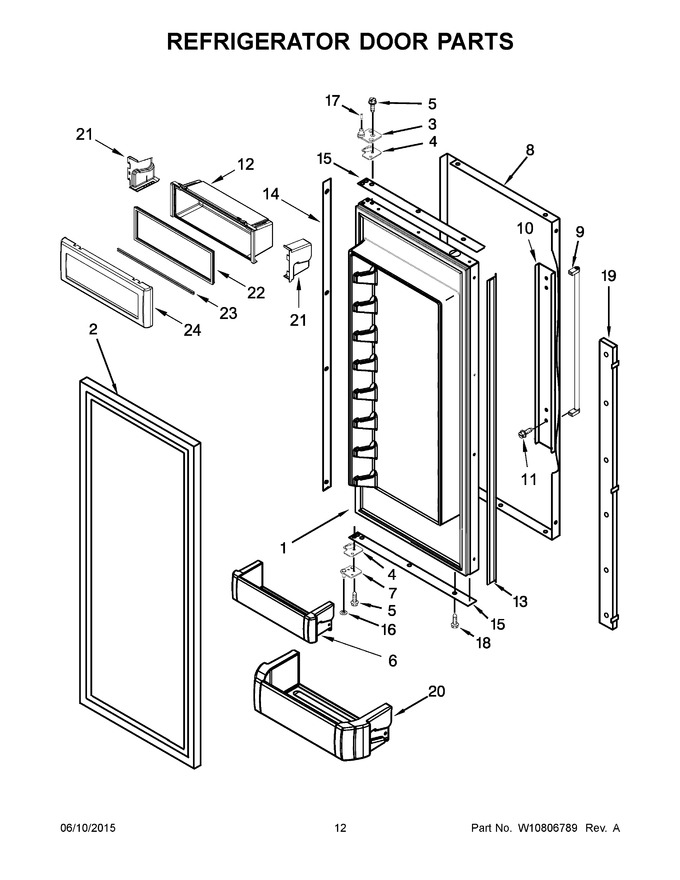

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10611982		Door, Refrigerator (includes Item 2) (left Hand)		Appelez-nous	-
2	W10600741		Gasket, Door (grey)				$ 228.32
3	W11673500		Assembly, Hinge (top)   (Replaces: 2320642)			Immediately	$ 117.33
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	W10529548		Bin, Door (shallow)				$ 261.73
7	W10273369		Assembly, Hinge (bottom) (left Hand)				$ 37.09
8	W11797602		Skin, Door (black)   (Replaces: W10752225)		Appelez-nous	-
9	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 195.04
10	W10127710		Plate, Handle Door			Immediately	$ 23.35
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
12	W10578281		Bin, Utility				$ 79.90
13	W10600736		Spacer, Door Edge (handle Side)				$ 273.29
14	W10600734		Spacer, Door Edge (hinge Side)				$ 267.44
15	W10600732		Spacer, Door (top/bottom)				$ 152.08
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W11500952		Bushing, Door Stop   (Replaces: 2316760)			Immediately	$ 31.27
18	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
19	W10732103		Assembly, Mullion				$ 317.07
20	W10529544		Bin, Door (gallon)				$ 284.41
21	W10578283		Cap, Utility Bin End (left Hand)		Appelez-nous	-
22	W10578284		Gasket, Utility Bin				$ 188.21
23	W10608799		Rail, Utility Lid				$ 126.81
24	W10600702		Lid, Utility				$ 72.06
1A	W11827071		Door, Refrigerator (includes Item 2) (right Hand)   (Replaces: W10600634)				$ 730.69
21A	W10578282		Cap, Utility Bin End (right Hand)		Appelez-nous	-
7A	W10273367		Assembly, Hinge (bottom) (right Hand)				$ 37.14

    View Diagram in Separate Window       Print Part List
