View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

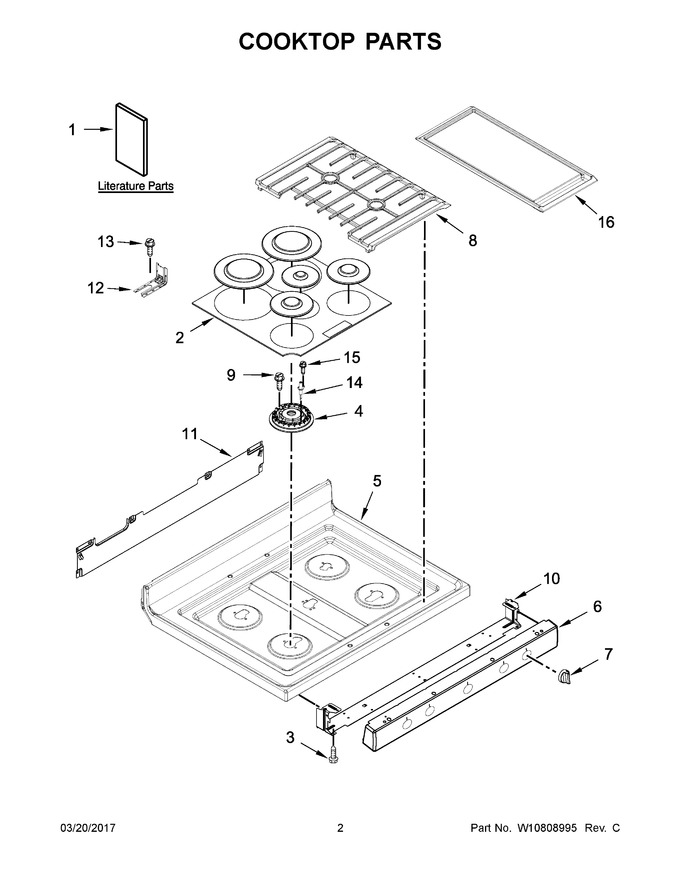

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10553363 | Instructions, Installation |
|
- | |||||
| 2 | WPW10183372 | Kit, Burner Cap (wetstone) (Replaces: W10183372) |
|
$ 91.41 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 4 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 101.22 | |||||
| 5 | W10366729 | Cooktop (white) |
|
- | |||||
| 6 | W10444452 | Panel, Manifold (white) |
|
$ 273.09 | |||||
| 7 | W10766544 | Knob (stainless) (Replaces: W10676228) |
|
Immediately | $ 39.69 | ||||
| 8 | W10695048 | Kit, Grate (wetstone) |
|
$ 241.57 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 10 | W10534174 | Bracket, Manifold Panel |
|
- | |||||
| 11 | W10530070 | Bracket, Rear Gas Cooktop |
|
- | |||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 13 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 14 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 39.39 | ||||
| 15 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 16 | W10347384 | Griddle |
|
- | |||||
| 1A | W10392928 | Guide, Use And Care |
|
- | |||||
| 1B | W10538797 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10538798 | Sheet, Tech (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1G | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 2A | WPW10183374 | Kit, Burner Cap (black) (Replaces: W10183374) |
|
$ 180.16 | |||||
| 4A | WPW10515454 | Assembly, Burner (9.5k) (left Rear & Center) (Replaces: W10515454) |
|
$ 104.17 | |||||
| 4B | WPW10515453 | Burner, Auxiliary (6k) (right Rear) (Replaces: W10515453) |
|
$ 89.36 | |||||
| 5A | W10366730 | Cooktop (black) |
|
- | |||||
| 6A | W10444453 | Panel, Manifold (black) |
|
- | |||||
| 6B | W10330066 | Panel, Manifold (stainless) |
|
$ 259.37 | |||||
| 8A | W11394363 | Kit, Grate (black) (Replaces: W10695046) |
|
$ 332.15 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W10324946 | Harness, Wire (drawer) |
|
$ 26.13 | |||||
| NI | W10519920 | Harness, Dsi Ground |
|
$ 18.95 | |||||
| NI | W10519948 | Harness, Main |
|
$ 164.34 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 194.90 | |||||
| NI | W10738993 | Harness, Dsi Cooktop |
|
$ 166.15 | |||||
| NI | 3196696 | Clip, Harness |
|
- | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 |
