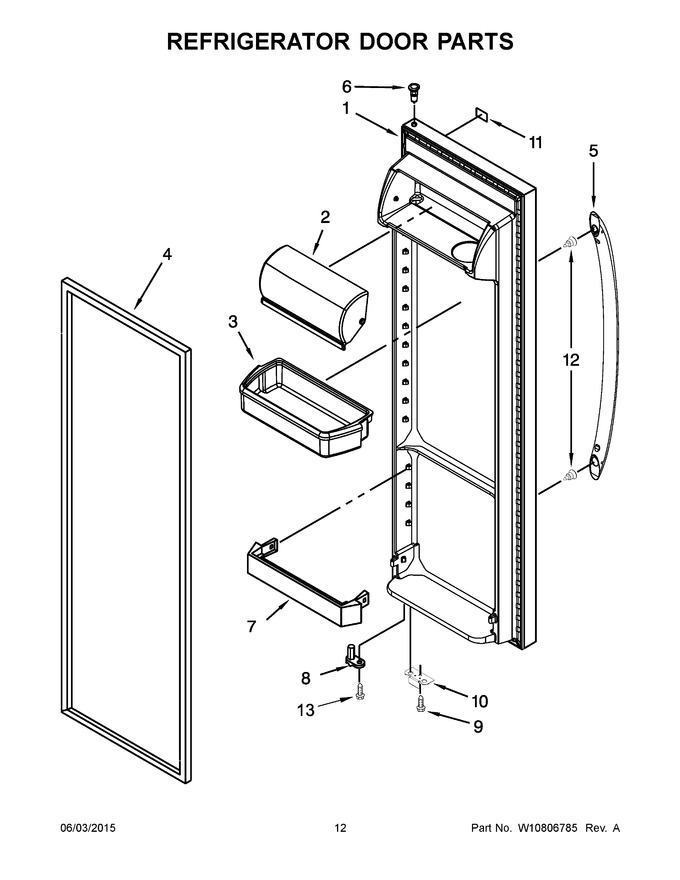

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10407712 | Door, Refrigerator (includes Item 4) (black) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | WPW10321304 | Bin, Door (Replaces: W10321304) |
|
Immediately | $ 40.46 | ||||
| 4 | 2159083 | Gasket, Door (black) (Replaces: 2309529) |
|
$ 299.48 | |||||
| 5 | W10805245 | Handle (black) (Replaces: W10713678) |
|
$ 204.75 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 7.34 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 68.69 | ||||
| 8 | WP2182179 | Thimble, Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 9 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 10 | W10219802 | Bracket, Door Stop (black) |
|
$ 5.62 | |||||
| 11 | WPW10511972 | Nameplate (grey) (Replaces: W10511972) |
|
$ 71.60 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 13 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 |
