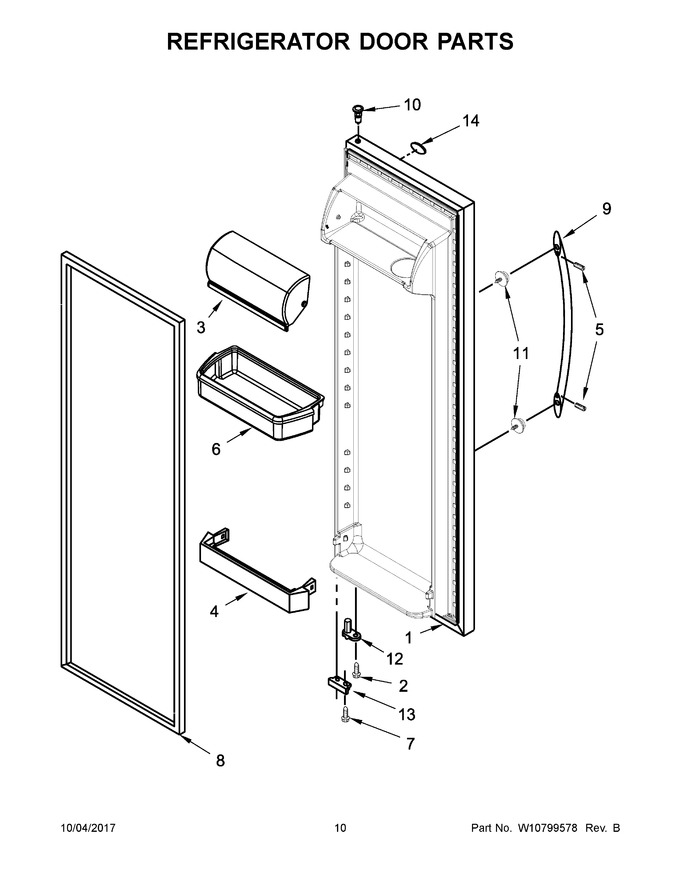

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407713		Refrigerator Door (includes Item #8) (white)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 80.48
4	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 68.69
5	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 16.59
6	WPW10321304		Bin, Door   (Replaces: W10321304)			Immediately	$ 40.46
7	WP489483		Screw   (Replaces: 489420)				$ 10.27
8	2159075		Door Gasket, Magnetic (service) (beige)   (Replaces: 2309528)			Immediately	$ 299.70
9	W10899551		Handle (stainless)   (Replaces: W10713676)			Immediately	$ 169.94
10	WP2182181		Thimble   (Replaces: 2182181)				$ 7.34
11	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
12	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.48
13	W10219801		Bracket, Door Stop (silver (white Model))				$ 5.27
14	WPW10511975		Nameplate (white)   (Replaces: W10511975)				$ 72.76
13A	2306940		Bracket, Door Stop (silver (black And Stainless Models))				$ 91.74
14A	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 71.60
1A	W10750034		Refrigerator Door (includes Item #8) (black)		Appelez-nous	-
1B	W10430228		Refrigerator Door (includes Item #8) (monochromatic Stainless)		Appelez-nous	-
8A	2159083		Door Gasket, Magnetic (service) (black)   (Replaces: 2309529)				$ 299.48
8B	WPW10136734		Door Gasket, Magnetic (service) (grey)   (Replaces: 2327163)				$ 301.85
