View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

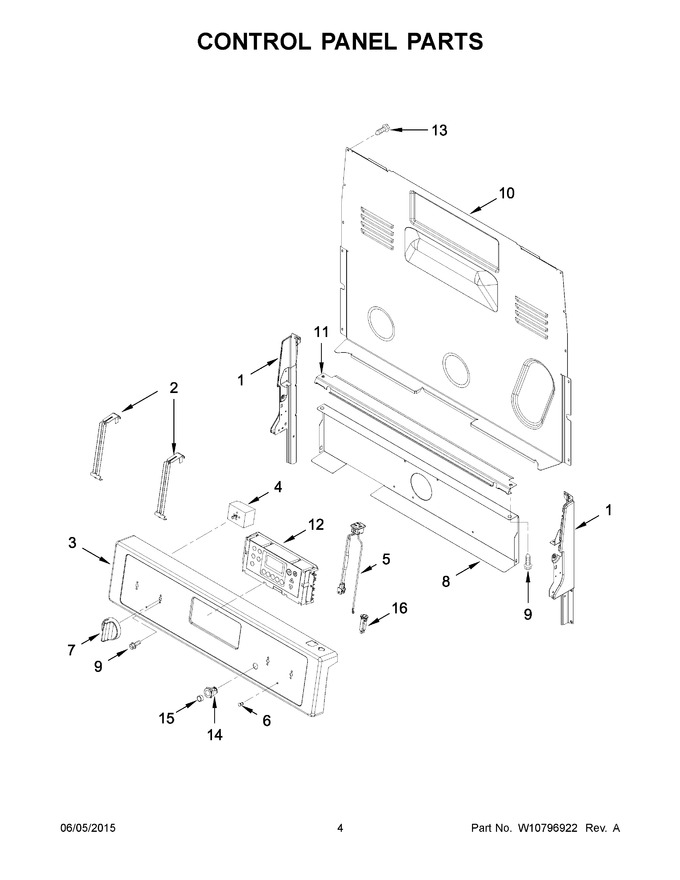

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 2 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 3 | W10370106 | Console, Panel (white) |
|
$ 152.84 | |||||
| 4 | W10857622 | Switch, Infinite (dual) (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 5 | W10849725 | Receptacle (white) (Replaces: W10488077) |
|
Immediately | $ 100.00 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10676217 | Knob (white) |
|
$ 68.42 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | WPW10586735 | Control, Electric (white) (Replaces: W10586735) |
|
$ 429.36 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W10217760 | Bezel, Keep Warm (white) |
|
$ 23.32 | |||||
| 15 | 9757492 | Button, Keep Warm (white) |
|
$ 86.41 | |||||
| 16 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 12A | WPW10586736 | Control, Electric (black) (Replaces: W10586736) |
|
$ 429.36 | |||||
| 12B | WPW10586737 | Control, Electric (stainless) (Replaces: W10586737) |
|
$ 486.48 | |||||
| 14A | W10217758 | Bezel, Keep Warm (black) |
|
$ 25.79 | |||||
| 14B | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 15A | 9758491 | Button, Keep Warm (black) |
|
$ 17.77 | |||||
| 15B | W10918209 | Button, Keep Warm (grey) (Replaces: W10315961) |
|
$ 18.19 | |||||
| 16A | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 1A | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1B | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1C | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 3A | W10370104 | Console, Panel (black) |
|
$ 87.00 | |||||
| 3B | W10339407 | Console, Panel (stainless) |
|
$ 372.20 | |||||
| 4A | W10911303 | Switch, Infinite (single) (right Rear And Left Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 5A | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 16.62 | ||||
| 7A | W10676216 | Knob (black) |
|
$ 68.42 | |||||
| 7B | W10854249 | Knob (stainless) (Replaces: W10676227) |
|
Immediately | $ 20.30 |
