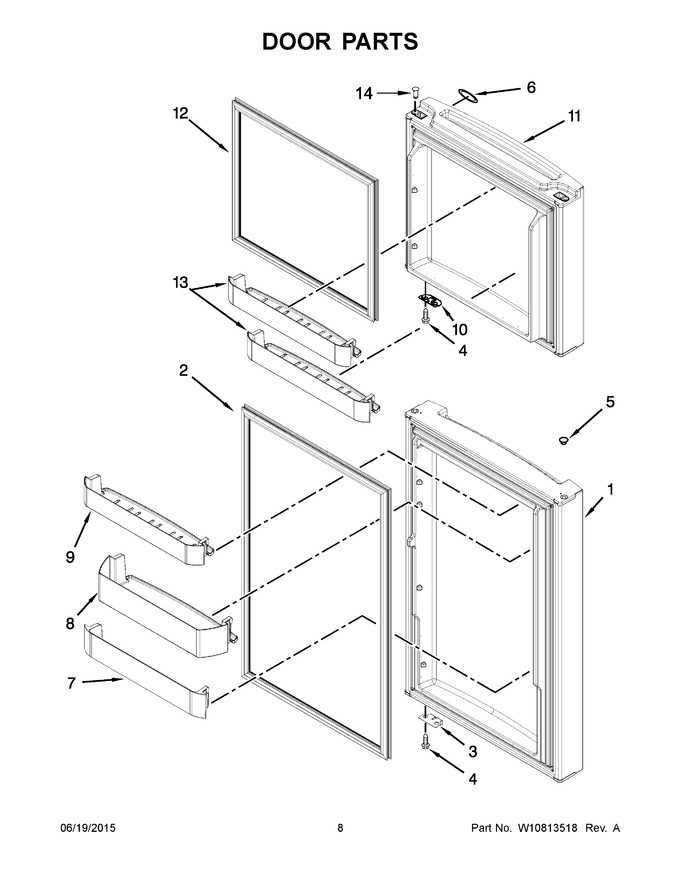

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10751127 | Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (white) |
|
- | |||||
| 2 | W11228130 | Gasket, Refrigerator Door (white) (Replaces: W10507443) |
|
$ 261.47 | |||||
| 3 | W10492012 | Bracket, Door Stop |
|
$ 15.17 | |||||
| 4 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 6 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 7 | W11199415 | Trim, Door Shelf (bottom) (Replaces: W10364009) |
|
$ 88.81 | |||||
| 8 | W10489075 | Bin, Gallon Door |
|
- | |||||
| 9 | WPW10364007 | Bin, Shallow Door (Replaces: W10364007) |
|
$ 69.24 | |||||
| 10 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 11 | W10751124 | Door, Freezer (includes Items 10, 12 & Molded Handle) (white) |
|
- | |||||
| 12 | W11625036 | Gasket, Freezer Door (white) (Replaces: W10507440) |
|
$ 213.08 | |||||
| 13 | WPW10370890 | Bin, Freezer Door (Replaces: W10370890) |
|
$ 68.29 | |||||
| 14 | W11759045 | Thimble-top (white) (Replaces: W10492018) |
|
Immediately | $ 11.11 | ||||
| 11A | W10751121 | Door, Freezer (includes Items 10, 12 & Molded Handle) (black) |
|
- | |||||
| 11B | LW10751123 | Door, Freezer (includes Items 10, 12 & Molded Handle) (stainless) (Replaces: W10751123) |
|
$ 641.58 | |||||
| 12A | W11625037 | Gasket, Freezer Door (black) (Replaces: W10507441) |
|
- | |||||
| 12B | W11625051 | Gasket, Freezer Door (grey) (Replaces: W10507442) |
|
$ 205.97 | |||||
| 14A | W11189115 | Thimble-top (black) (Replaces: W10334042) |
|
$ 11.44 | |||||
| 14B | W11676573 | Thimble-top (grey) (Replaces: W10492022) |
|
$ 13.33 | |||||
| 1A | W10751125 | Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (black) |
|
- | |||||
| 1B | W10751126 | Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (stainless) |
|
- | |||||
| 2A | W11625052 | Gasket, Refrigerator Door (black) (Replaces: W10507447) |
|
$ 207.14 | |||||
| 2B | W11625055 | Gasket, Refrigerator Door (grey) (Replaces: W10507460) |
|
$ 209.00 | |||||
| 5A | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
Immediately | $ 21.79 | ||||
| 5B | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 6A | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 |
