01 - Cover Sheet
02 - Control Panel Parts

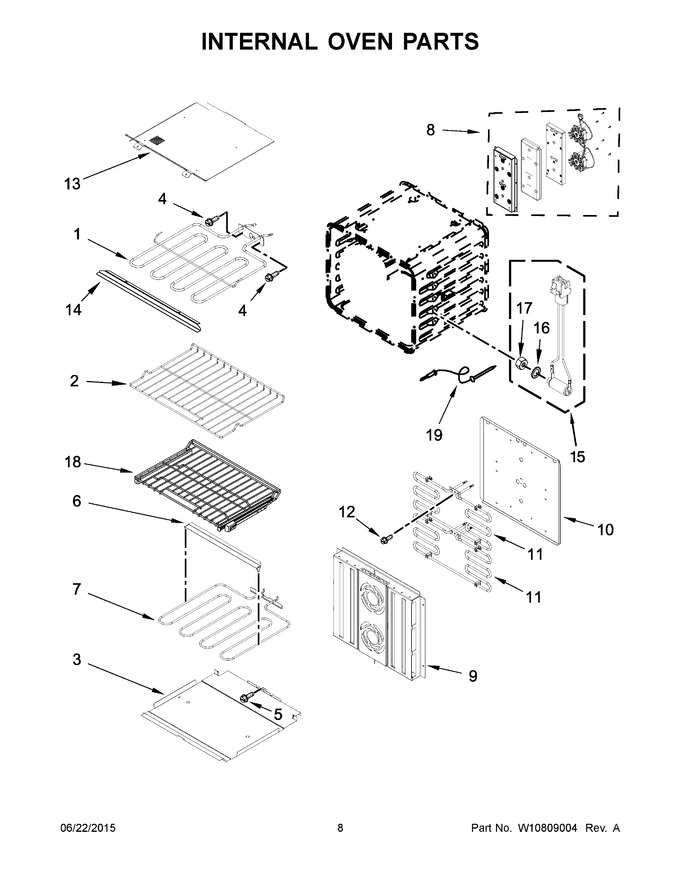

03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804429 | Element, Broil (Replaces: W10764078) |
|
Immediately | $ 137.62 | ||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 164.66 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 176.25 | |||||
| 4 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.81 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 42.72 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10546517) |
|
Immediately | $ 131.81 | ||||
| 8 | W11255349 | Assembly, Convection Motor (Replaces: W10559986) |
|
Immediately | $ 371.93 | ||||
| 9 | W11313747 | Assembly, Baffle (Replaces: W10559988) |
|
$ 214.88 | |||||
| 10 | W10559982 | Shield, Convection |
|
Immediately | $ 98.44 | ||||
| 11 | W10663735 | Element, Convection |
|
$ 277.74 | |||||
| 12 | WP489464 | Screw (Replaces: W10236129) |
|
Immediately | $ 7.54 | ||||
| 13 | W11290999 | Shield, Broil Element (Replaces: W10318164) |
|
$ 189.86 | |||||
| 14 | W10588737 | Shield, Broil Front |
|
$ 94.86 | |||||
| 15 | WPW10524044 | Jack, Meat Probe (Replaces: W10524044) |
|
$ 188.35 | |||||
| 16 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 5.77 | |||||
| 17 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.57 | |||||
| 18 | W11256305 | Rack, Sliding (Replaces: W10663550) |
|
$ 329.03 | |||||
| 19 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 |
