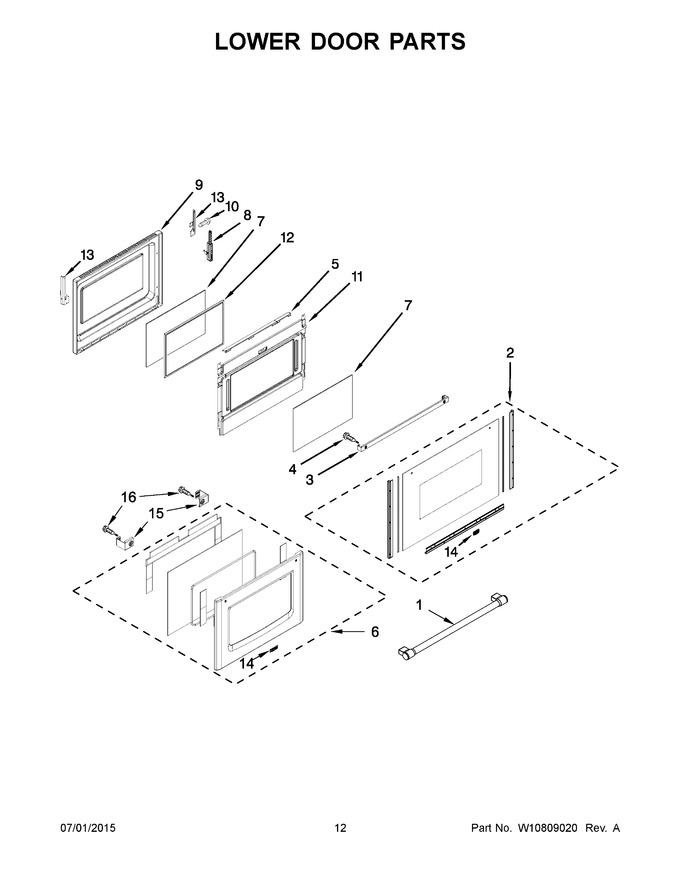

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10653408		Assembly, Door Handle (stainless (black Ice Models))				$ 234.13
2	W10719636		Assembly, Door (black)   (Replaces: W10638792)				$ 382.65
3	WPW10294695		Bracket, Handle   (Replaces: W10294695)				$ 132.32
4	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 7.38
5	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 177.65
6	W10638790		Assembly, Door (stainless)		Appelez-nous	-
7	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 158.18
8	WPW10335434		Hinge, Door (left)   (Replaces: W10335434)			Immediately	$ 92.61
9	WPW10272698		Lining, Door   (Replaces: W10272698)				$ 311.15
10	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
11	W10340464		Retainer, Insulation				$ 260.82
12	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 95.79
13	WPW10272329		Receiver (left)   (Replaces: W10272329)				$ 73.00
14	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
15	W10645182		Bracket, Door Handle (stainless Models Only)				$ 37.56
16	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
13A	WPW10272328		Receiver (right)   (Replaces: W10272328)				$ 81.04
1A	W10665842		Assembly, Door Handle (stainless (white Ice Models))				$ 234.13
1B	W10832693		Assembly, Door Handle (stainless Models)   (Replaces: W10665843)			Immediately	$ 292.12
2A	W10719637		Assembly, Door (white)   (Replaces: W10638793)				$ 410.90
8A	WPW10335433		Hinge, Door (right)   (Replaces: W10335433)				$ 94.49
