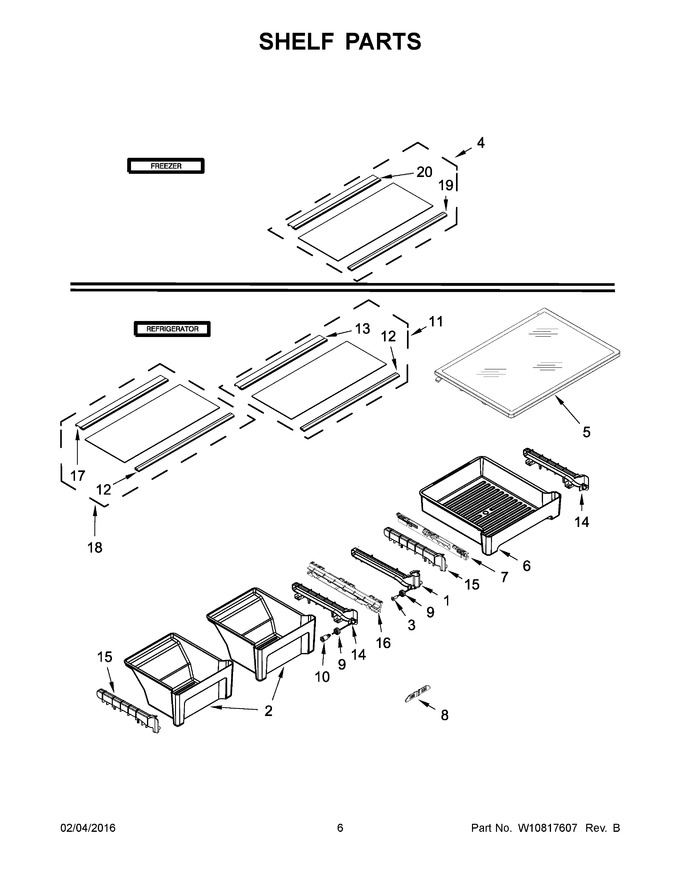

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773992 | Track, Rail Center (Replaces: W10694127) |
|
Immediately | $ 28.90 | ||||
| 2 | W10860753 | Assembly, Crisper Pan (Replaces: W10668872) |
|
$ 144.33 | |||||
| 3 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 4 | W11567275 | Assembly, Shelf (Replaces: W10809781) |
|
- | |||||
| 5 | WPW10704017 | Assembly, Shelf (Replaces: W10704017) |
|
$ 224.66 | |||||
| 6 | WPW10308848 | Meat Pan (Replaces: W10308848) |
|
$ 146.13 | |||||
| 7 | WPW10468555 | Rail, Track (left Hand) (Replaces: W10468555) |
|
Immediately | $ 22.59 | ||||
| 8 | W11590562 | Control, Humidity (Replaces: W10356844) |
|
$ 21.11 | |||||
| 9 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 14.17 | ||||
| 10 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 16.11 | ||||
| 11 | W11567280 | Assembly, Shelf (Replaces: W10821670) |
|
$ 83.54 | |||||
| 12 | W10809771 | Trim, Shelf Front |
|
- | |||||
| 13 | W11167827 | Trim, Shelf Rear (Replaces: W10628686) |
|
$ 56.97 | |||||
| 14 | W11084244 | Rail, Track (right Hand) (Replaces: W10694126) |
|
Immediately | $ 89.32 | ||||
| 15 | W11818646 | Rail, Track (left Hand) (Replaces: W10694125) |
|
Immediately | $ 27.93 | ||||
| 16 | WPW10468556 | Rail, Track (right Hand) (Replaces: W10468556) |
|
Immediately | $ 6.80 | ||||
| 17 | W10730133 | Trim, Shelf Rear |
|
- | |||||
| 18 | W11567277 | Assembly, Shelf (Replaces: W10809782) |
|
$ 83.89 | |||||
| 19 | W10809770 | Trim, Shelf Front |
|
- | |||||
| 20 | W11167828 | Trim, Shelf Rear (Replaces: W10628690) |
|
$ 58.97 |
