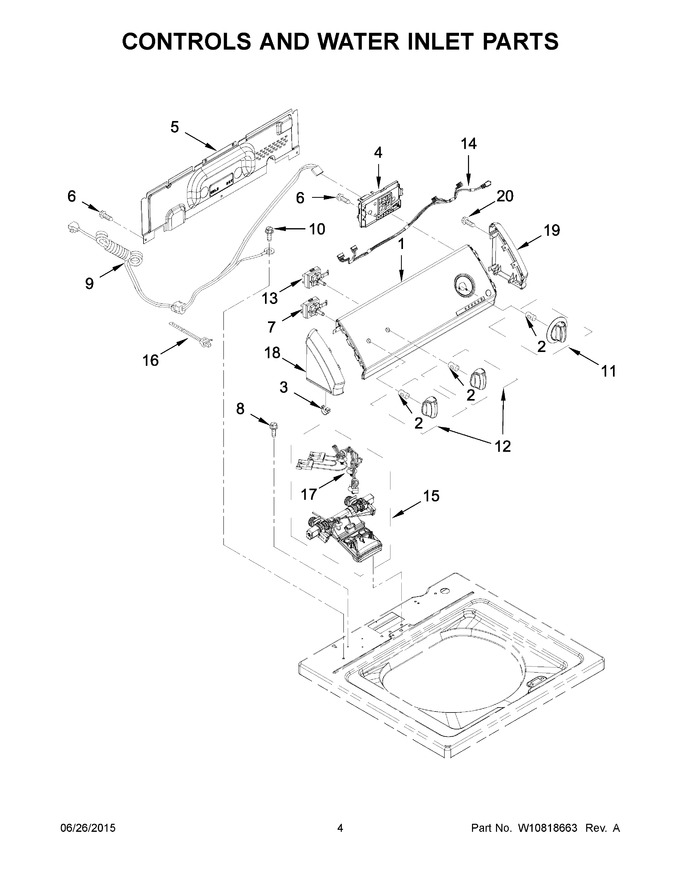

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10740635		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
4	W11116519		Control Unit Assembly, Machine & Motor   (Replaces: W10792737)		Appelez-nous	-
5	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
6	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
7	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 122.27
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
9	W10877409		Cord, Power   (Replaces: W10737739)				$ 117.00
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
12	W10317458		Assembly, Control Knob (grey)		Appelez-nous	-
13	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 142.31
14	W10786099		Harness, Upper		Appelez-nous	-
15	W11210459		Inlet Assembly, Water   (Replaces: W10701459)			Immediately	$ 94.50
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
17	W10678671		Harness, Valve				$ 166.83
18	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 65.69
19	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 65.49
20	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
