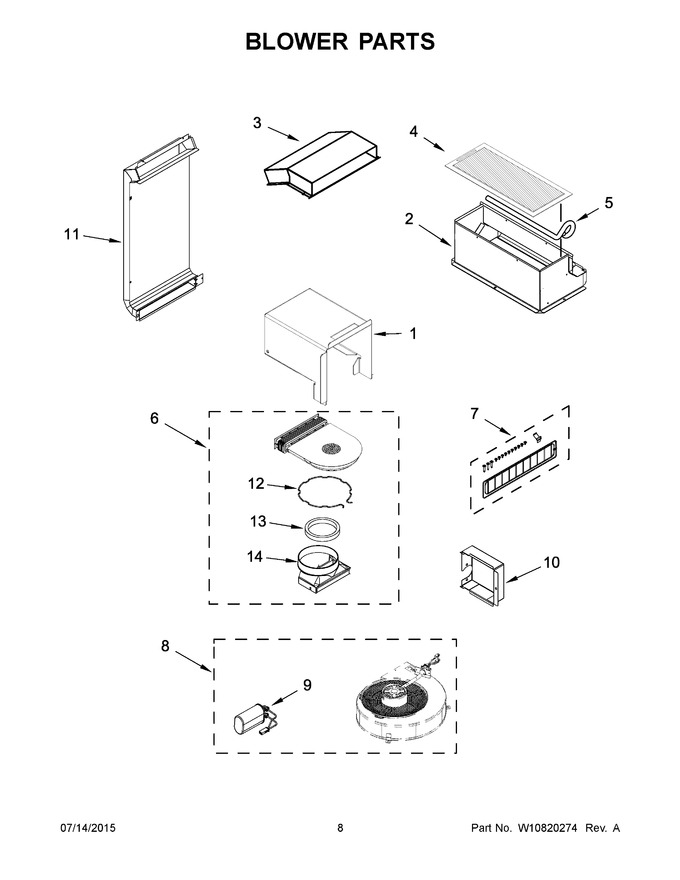

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10661156		Enclosure, Blower				$ 124.16
2	W10572225		Plenum Intake, Gas		Appelez-nous	-
3	W10572145		Plenum, Upper				$ 181.28
4	W11190170		Grease, Filter   (Replaces: W10575379)			Immediately	$ 78.92
5	W10575393		Guard, Filter				$ 12.56
6	W10719270		Kit, Transition		Appelez-nous	-
7	W10726797		Kit, Blower Installation		Appelez-nous	-
8	W10691725		Kit, Blower Downdraft		Appelez-nous	-
9	W11209781		Capacitor, Assembly   (Replaces: W10788527)			Immediately	$ 83.88
10	W10661188		Cover, Capacitor		Appelez-nous	-
11	W10661835		Plenum, Side				$ 190.67
12	W10702071		Retainer			Immediately	$ 105.80
13	W10726799		Gasket, Blower		Appelez-nous	-
14	W10642096		Adaptor, Exhaust			Immediately	$ 178.31
