SELECT A DIAGRAM

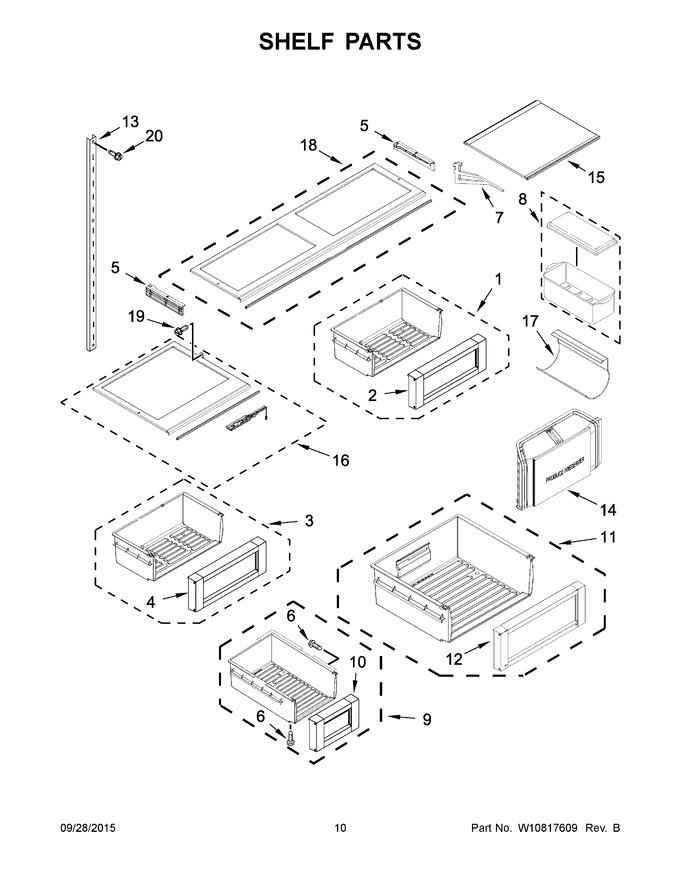

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Top Grille And Unit Cover Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Ice Maker Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529501		Assembly, Crisper Pan				$ 414.52
2	W10529479		Assembly, Crisper Pan Front				$ 346.10
3	W10529506		Assembly, Deli Pan				$ 308.08
4	W10529487		Assembly, Deli Pan Front		Appelez-nous	-
5	W10569842		Support, Crisper Cover Left Hand (grey)		Appelez-nous	-
6	WP488787		Screw   (Replaces: 488886)				$ 10.13
7	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 46.48
8	WP2221071A		Assembly, Egg Bin   (Replaces: 2221071)				$ 23.21
9	W10626679		Assembly, Ice Pan				$ 340.98
10	W10626676		Assembly, Ice Pan Front		Appelez-nous	-
11	W10626681		Assembly, Freezer Pan				$ 343.87
12	W10626678		Assembly, Front Pan				$ 344.15
13	W10743255		Ladder, Shelf Left Hand (black)		Appelez-nous	-
14	W10593207		Assembly, Produce Preserver		Appelez-nous	-
15	WPW10198701		Assembly, Shelf   (Replaces: W10198701)				$ 219.65
16	W10559654		Cover, Deli Bin (left Hand)			Immediately	$ 306.39
17	W10701859		Rack, Wine				$ 19.38
18	WPW10569917		Cover, Crisper   (Replaces: W10569917)				$ 268.02
19	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.42
20	W10678207		Screw (black)				$ 14.79
13A	W10743254		Ladder, Shelf Right Hand (black)		Appelez-nous	-
13B	W10743230		Ladder, Shelf Center (black)		Appelez-nous	-
16A	W10559655		Cover, Deli Bin (right Hand)			Immediately	$ 297.75
5A	W10569839		Support, Crisper Cover Right Hand (grey)		Appelez-nous	-
