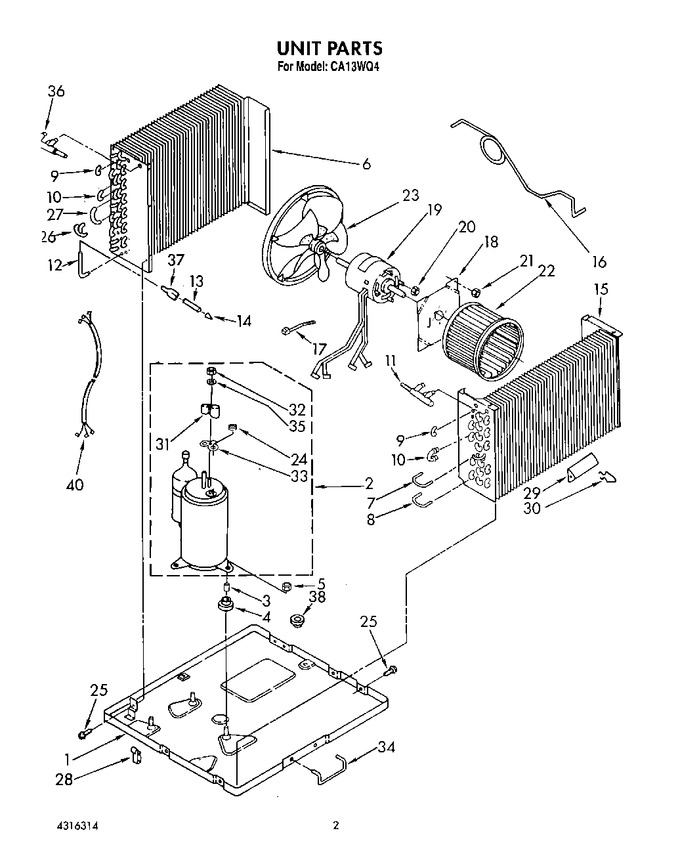

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	950364		Base		Appelez-nous	-
2	819117		Compressor		Appelez-nous	-
3	950020		Sleeve (3)		Appelez-nous	-
4	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
5	858121		Locknut (3)		Appelez-nous	-
6	1156327		Condenser		Appelez-nous	-
7	1158407		Tube, Riser		Appelez-nous	-
8	1156595		Tube, Riser		Appelez-nous	-
9	708532		Bend, Return Condenser (12) Evaporator (11)		Appelez-nous	-
10	708531		Bend, Return Condenser (7) Evaporator (8)		Appelez-nous	-
11	1156596		Tube, Manifold		Appelez-nous	-
12	1155580		Tube, 90~ Connect		Appelez-nous	-
13	1155598		Tube, Strainer Assembly (includes Illus. 14)		Appelez-nous	-
14	49599		Strainer		Appelez-nous	-
15	1156570		Evaporator		Appelez-nous	-
16	1156685		Tube, Restrictor (3) (length 35.0``)		Appelez-nous	-
17	WPW10339879		Wire, Tie   (Replaces: 612805)				$ 7.47
18	998024		Plate, Fan Motor		Appelez-nous	-
19	1155606		Motor, Fan		Appelez-nous	-
20	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
21	858122		Locknut (4)		Appelez-nous	-
22	1159499		Wheel, Blower		Appelez-nous	-
23	853699		Blade, Fan		Appelez-nous	-
24	950032		Spring, Overload		Appelez-nous	-
25	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
26	1156107		Bend, Return (3-way)		Appelez-nous	-
27	1156329		Bend Return (2)		Appelez-nous	-
28	642684		Clamp, Tube		Appelez-nous	-
29	996773		Anticipator, Temperature		Appelez-nous	-
30	475577		Clip, Anticipator		Appelez-nous	-
31	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
32	WP950027		Retainer, Cover   (Replaces: 950027)				$ 5.20
33	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
34	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
35	950037		Gasket, Nut		Appelez-nous	-
36	1156330		Tube, Manifold		Appelez-nous	-
37	947364		Tube, Flow Divider		Appelez-nous	-
38	948130		Bushing, Base To Condenser		Appelez-nous	-
40	484136		Harness, Wiring		Appelez-nous	-
	LIT1160775		Sheet, Tech		Appelez-nous	-
	LIT4316314		List, Repair Parts		Appelez-nous	-
	LIT1161930		Instructions, Installation		Appelez-nous	-
	LIT1156691		Guide, Energy		Appelez-nous	-
	LIT1161908		Guide, Use And Care		Appelez-nous	-
	LIT1160774		Wiring Diagram		Appelez-nous	-
