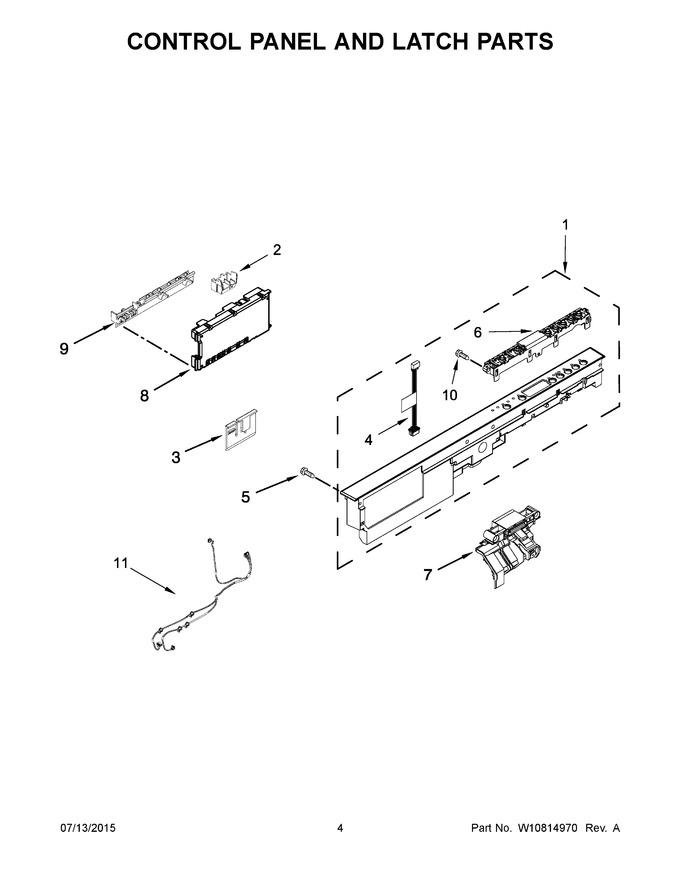

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10644261 | Console Assembly (black) |
|
$ 350.15 | |||||
| 2 | W10783730 | Box, Connector (Replaces: W10756253) |
|
$ 28.27 | |||||
| 3 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 20.94 | |||||
| 4 | W11028004 | Jumper, 4-wire (Replaces: W10566903) |
|
$ 20.13 | |||||
| 5 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 6.80 | ||||
| 6 | W10629151 | Housing Assembly, User Interface |
|
$ 227.16 | |||||
| 7 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 30.76 | ||||
| 8 | W10854221 | Control, Electronic (Replaces: W10746418) |
|
$ 255.39 | |||||
| 9 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 27.50 | |||||
| 10 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.22 | ||||
| 11 | W10751782 | Jumper, Door Switch |
|
$ 20.93 | |||||
| 1A | W10644262 | Console Assembly (white) |
|
$ 350.06 | |||||
| 1B | W10859914 | Console Assembly (stainless) (Replaces: W10644263) |
|
$ 370.49 |
