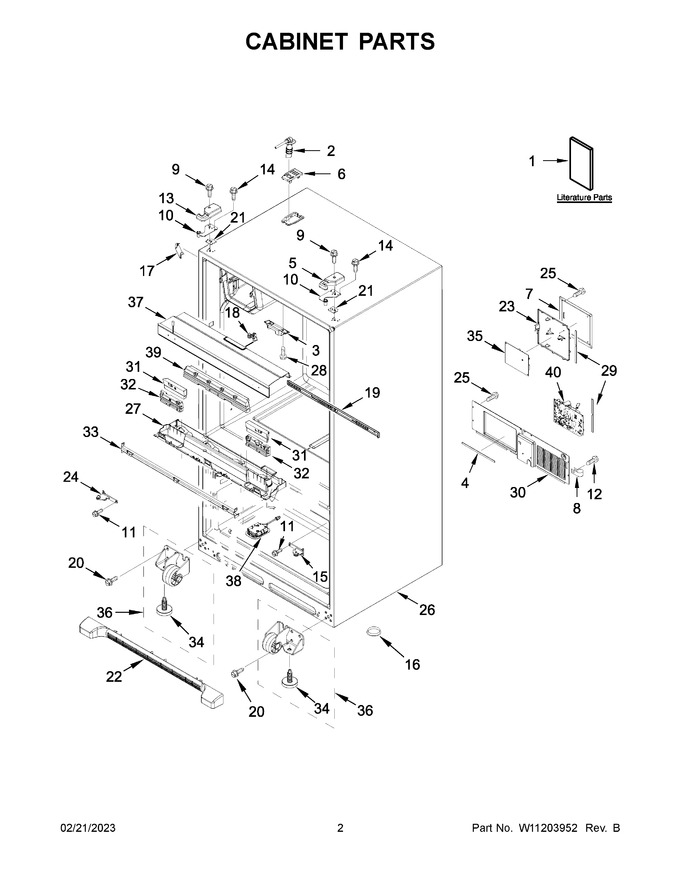

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10814198		Tech Sheet		Appelez-nous	-
2	W11415785		Tube, Water   (Replaces: 12961401)			Immediately	$ 68.14
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 7.39
4	B5759655		Gasket				$ 11.73
5	WPW10191117		Cover, Top Hinge Right Hand (grey)   (Replaces: 12962302AP)				$ 20.75
6	W10191141		Cover, Fill Tube (grey)   (Replaces: 12981401AP)				$ 13.55
7	12961602		Cover, Control Box				$ 104.57
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 20.16
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 6.80
10	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 28.73
11	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 7.92
12	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
13	WPW10337648		Cover, Top Hinge Left Hand (grey)   (Replaces: W10337648)				$ 20.81
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.59
15	W11747628		Hinge, Center Right Hand (grey)   (Replaces: W10740146)			Immediately	$ 57.76
16	A3076901		Plug, Button				$ 5.70
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 7.26
18	W10827867		Knob, Vent Slide		Appelez-nous	-
19	W10367522		Slide, Mullion Vent		Appelez-nous	-
20	67006564		Screw   (Replaces: W10709365)			Immediately	$ 7.34
21	12999501		Shim, Top Hinge (left Hand)				$ 89.58
22	WPW10534155		Grille, Toe (grey)   (Replaces: W10534155)			Immediately	$ 107.60
23	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 76.64
24	W11747628		Hinge, Center Left Hand (grey)   (Replaces: W10740150)			Immediately	$ 57.76
25	W11686675		Screw   (Replaces: 12990702)				$ 12.84
26	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
27	W10877249		Housing, Module   (Replaces: W10820998)		Appelez-nous	-
28	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
29	12957801		Gasket, Control Box		Appelez-nous	-
30	WPW10270394		Cover, Unit   (Replaces: W10270394)				$ 187.86
31	W11697528		Wedge, Spacer (left Hand & Right Hand)   (Replaces: W10316403)		Appelez-nous	-
32	W10316401		Wedge, Spacer (left Hand & Right Hand)		Appelez-nous	-
33	W10492234		Brace, Mullion		Appelez-nous	-
34	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
35	W11035835		Board, Hv Control   (Replaces: W10614933)			Immediately	$ 452.31
36	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 33.62
37	W10877493		Assembly, Secondary Mullion (grey)   (Replaces: W10831970)		Appelez-nous	-
38	W11683243		Assembly, Led Light Module   (Replaces: W10843353)			Immediately	$ 242.92
39	W10311721		Mullion, Secondary		Appelez-nous	-
40	WPW10226427		Control, Electronic (power Supply)   (Replaces: W10226427)			Immediately	$ 316.74
10A	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 28.71
1A	W10422734		Use & Care Guide		Appelez-nous	-
1B	W11112966		Energy Guide		Appelez-nous	-
21A	12999502		Shim, Top Hinge (right Hand)				$ 90.54
36A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 33.62
