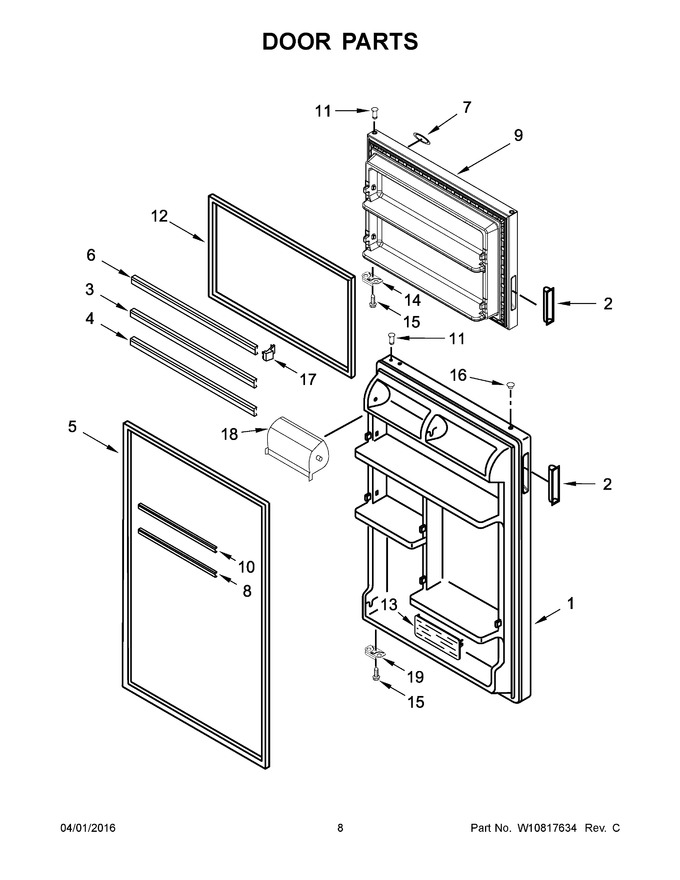

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10680726 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10680726) |
|
$ 656.77 | |||||
| 2 | W10352523 | Handle Cup (white) |
|
$ 22.68 | |||||
| 3 | W11106290 | Trim, Shelf Door (Replaces: W10719701) |
|
Immediately | $ 114.61 | ||||
| 4 | W11170805 | Trim, Door (Replaces: W10678772) |
|
$ 114.61 | |||||
| 5 | W10838574 | Door Gasket, Magnetic (white) (Replaces: W10638676) |
|
Immediately | $ 96.40 | ||||
| 6 | W11126055 | Trim, Door (Replaces: W10719702) |
|
Immediately | $ 114.61 | ||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 114.61 | ||||
| 9 | LW10680729 | Freezer Door (includes Illustration 12) (white) (Replaces: W10680729) |
|
$ 622.21 | |||||
| 10 | W11097831 | Trim, Door (Replaces: W10719703) |
|
$ 11.07 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 12 | W10861499 | Door Gasket, Magnetic (white) (Replaces: W10638675) |
|
Immediately | $ 88.56 | ||||
| 13 | WP2188234 | Door, Flip Up (Replaces: 2188234) |
|
Immediately | $ 54.28 | ||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 18 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 45.30 | ||||
| 19 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 61.93 | |||||
| 12A | W11229610 | Door Gasket, Magnetic (black) (Replaces: W10667843) |
|
Immediately | $ 270.62 | ||||
| 12B | W11036546 | Door Gasket, Magnetic (grey) (Replaces: W10638686) |
|
Immediately | $ 194.26 | ||||
| 16A | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 16B | WP2254517 | Hole Plug (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 1A | LW10680725 | Refrigerator Door (includes Illustration 5) (black) (Replaces: W10680725) |
|
$ 649.71 | |||||
| 1B | LW10680727 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces: W10680727) |
|
$ 762.44 | |||||
| 2A | W10174743 | Handle Cup (black) |
|
$ 14.34 | |||||
| 2B | W11395913 | Handle Cup (grey) (Replaces: W10240002) |
|
$ 46.37 | |||||
| 5A | W11240749 | Door Gasket, Magnetic (black) (Replaces: W10678768) |
|
Immediately | $ 270.62 | ||||
| 5B | W11028007 | Door Gasket, Magnetic (grey) (Replaces: W10638687) |
|
$ 278.77 | |||||
| 9A | LW10680728 | Freezer Door (includes Illustration 12) (black) (Replaces: W10680728) |
|
$ 622.79 | |||||
| 9B | LW10680730 | Freezer Door (includes Illustration 12) (stainless) (Replaces: W10680730) |
|
$ 694.52 |
