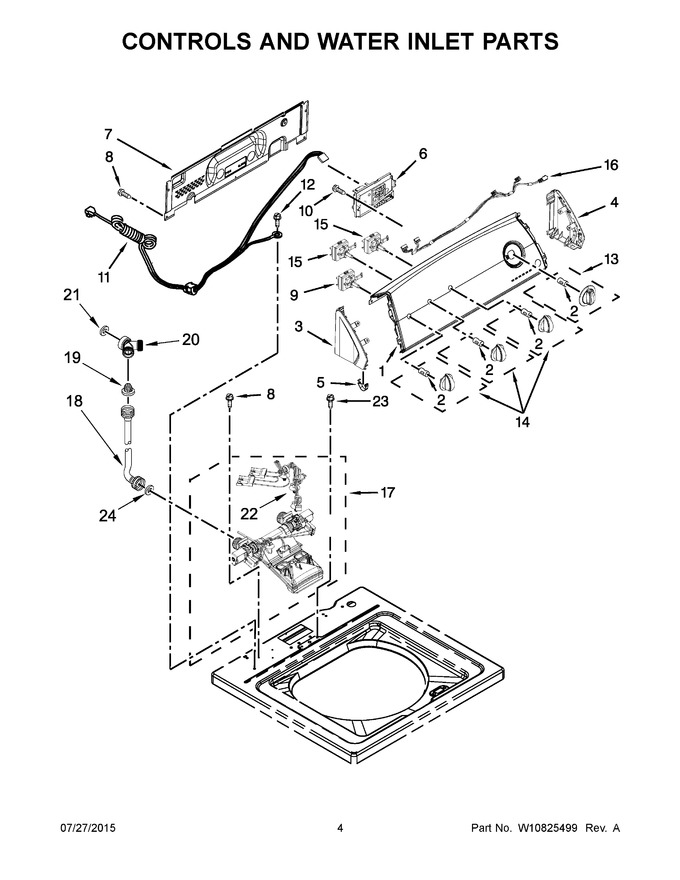

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10736644 | Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WPW10251358 | End Cap (left) (white) (Replaces: W10251358) |
|
$ 46.28 | |||||
| 4 | WPW10251355 | End Cap (right) (white) (Replaces: W10251355) |
|
$ 46.25 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11090931 | Control Unit Assembly, Machine & Motor (Replaces: W10758698) |
|
$ 415.50 | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 324.39 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | W10422755 | Cord, Power |
|
- | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | WPW10327522 | Assembly, Timer Knob (grey) (Replaces: W10327522) |
|
$ 45.87 | |||||
| 14 | WPW10327523 | Assembly, Control Knob (grey) (Replaces: W10327523) |
|
$ 49.62 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 163.89 | ||||
| 16 | W10291183 | Harness, Upper |
|
$ 140.44 | |||||
| 17 | WPW10683676 | Inlet Assembly, Water (Replaces: W10683676) |
|
$ 186.83 | |||||
| 18 | WP89503 | Hose, Water Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 21.68 | ||||
| 19 | 285452A | Washer, Filter (Replaces: W10810281) |
|
Immediately | $ 8.72 | ||||
| 20 | WPW10269488 | Connector, Hose -"y (Replaces: W10269488) |
|
$ 80.68 | |||||
| 21 | WP3357450 | Washer, Hose Adapter (Replaces: 3357450) |
|
$ 10.40 | |||||
| 22 | W10876654 | Harness, Valve (Replaces: W10684972) |
|
$ 175.43 | |||||
| 23 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 24 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 7.34 | |||||
| 18A | WP89503 | Hose, Water Inlet (hot) (Replaces: W10194211) |
|
Immediately | $ 21.68 | ||||
| NI | WPW10475423 | 10a Cord Adapter (type B) (Replaces: W10475423) |
|
$ 19.58 | |||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 25.24 | |||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 72.81 | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | N/P | (parts Not Shown) |
|
- |
