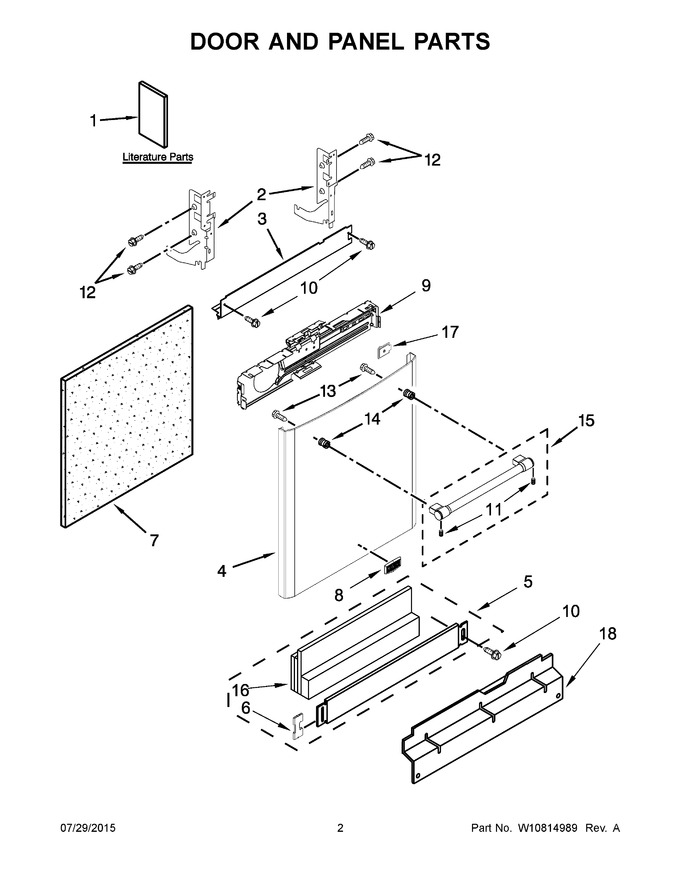

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10741197 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 128.15

3 W10850371 Barrier, Vapor   (Replaces: W10726645) In-Stock Immediately $ 29.59

4 W10837013 Panel Front (includes Items 8, 13, 14 & 17) (black)   (Replaces: W10562144) Special Order $ 263.88

5 W10871196 Toe Panel (black)   (Replaces: W10586590) Special Order $ 156.64

6 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 10.09

7 W11126003 Insulation, Front Panel   (Replaces: W10620222) In-Stock Immediately $ 58.73

8 WPW10612925 Badge   (Replaces: W10612925) In-Stock Immediately $ 38.12

9 W11116870 Bracket, Control   (Replaces: W10641745) Special Order $ 80.96

10 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 7.36

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.56

12 WP3400071 Screw   (Replaces: 3400071) In-Stock Immediately $ 7.43

13 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 6.80

14 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 7.98

15 WPW10687840 Handle (stainless)   (Replaces: W10687840) Special Order $ 241.61

16 W10831329 Insulation, Four Layer   (Replaces: W10526105) In-Stock Immediately $ 38.97

17 W10319007 Light, Pipe Special Order $ 64.80

18 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 38.03

19 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 6.80

10A WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 7.29

18A WPW10441007 Access Panel (white)   (Replaces: W10195778) Special Order $ 153.85

1A W10599490 Energy Guide Appelez-nous -
1B W10599529 Use & Care Guide Appelez-nous -
1C W10751162 Tech Sheet, English Appelez-nous -
1D W10751165 Tech Sheet, French Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 128.02

4A W10562145 Panel Front (includes Items 8, 13, 14 & 17) (white) Special Order $ 188.75

4B WPW10562146 Panel Front (includes Items 8, 13, 14 & 17) (stainless)   (Replaces: W10562146) Special Order $ 371.57

5A WPW10586591 Toe Panel (white)   (Replaces: W10586591) Special Order $ 278.45


    View Diagram in Separate Window     Print Icon   Print Part List
