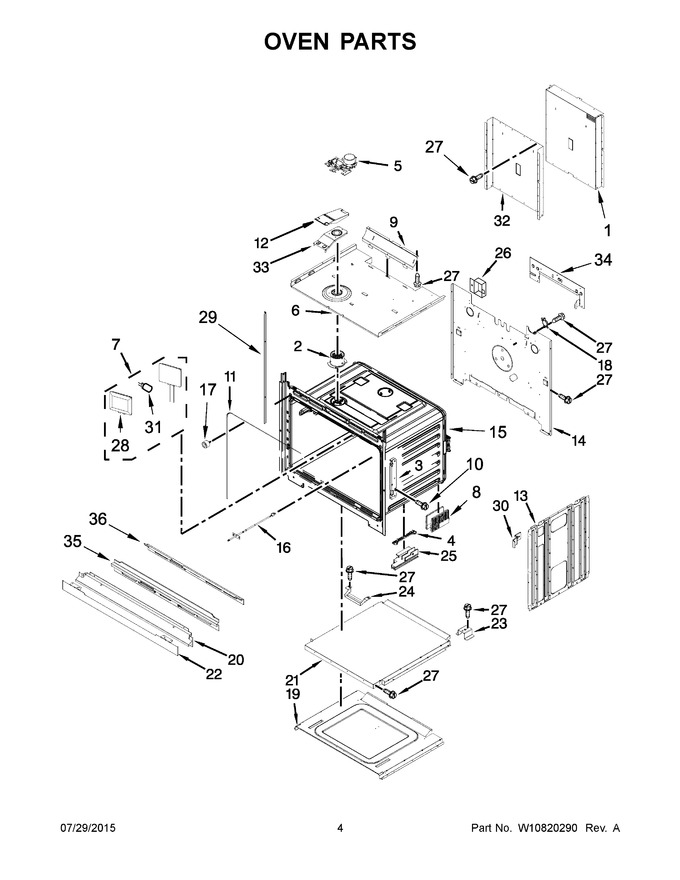

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10318196 | Duct, Chassis Back (upper) |
|
$ 197.00 | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 22.99 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10616802) |
|
Immediately | $ 51.74 | ||||
| 4 | W11240831 | Spacer, Base (Replaces: W10618102) |
|
$ 15.53 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 275.81 | ||||
| 6 | W10730173 | Top, Chassis |
|
- | |||||
| 7 | WPW10519866 | Assembly, Oven Light (Replaces: W10519866) |
|
$ 86.70 | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10618101) |
|
$ 30.16 | |||||
| 9 | W10904163 | Deflector, Blower (Replaces: W10641572) |
|
Immediately | $ 152.81 | ||||
| 10 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 8.30 | |||||
| 11 | W10856596 | Gasket (Replaces: W10282961) |
|
Immediately | $ 149.08 | ||||
| 12 | W10616810 | Cover, Vent Exhaust |
|
$ 62.96 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10813734 | Back, Chassis (Replaces: W10696136) |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | WP74008369 | Probe, Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 133.43 | ||||
| 17 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 9.91 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 121.07 | ||||
| 19 | W10282901 | Base, Chassis |
|
$ 177.43 | |||||
| 20 | W10351276 | Assembly, Bottom Vent (black) |
|
$ 131.49 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 198.05 | |||||
| 22 | WPW10351237 | Trim, Bottom Vent (black) (Replaces: W10351237) |
|
$ 134.07 | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Spacer, Chassis Bottom Duct |
|
$ 58.73 | |||||
| 25 | W10848812 | Foot, Front (left) (Replaces: W10618103) |
|
$ 29.44 | |||||
| 26 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 28 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 86.70 | |||||
| 29 | W10536161 | Cover, Side Trim (left) (Replaces: W10327369) |
|
$ 45.56 | |||||
| 30 | W11376811 | Spacers, Front (Replaces: W10618106) |
|
$ 15.44 | |||||
| 31 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 103.05 | ||||
| 32 | W10542857 | Duct, Chassis Back (lower) |
|
$ 105.99 | |||||
| 33 | W10616809 | Base, Vent Exhaust |
|
$ 29.02 | |||||
| 34 | W10588736 | Bracket, U-shape |
|
- | |||||
| 35 | W10283041 | Vent, Center 27 |
|
Immediately | $ 140.25 | ||||
| 36 | W10283037 | Vent, Top 27 |
|
Immediately | $ 133.48 | ||||
| 20A | W10506349 | Assembly, Bottom Vent (white) |
|
$ 145.03 | |||||
| 20B | WPW10327376 | Assembly, Bottom Vent (stainless) (Replaces: W10327376) |
|
$ 505.31 | |||||
| 22A | WPW10504025 | Trim, Bottom Vent (white) (Replaces: W10504025) |
|
$ 129.22 | |||||
| 22B | WPW10327378 | Trim, Bottom Vent (stainless) (Replaces: W10327378) |
|
Immediately | $ 202.29 | ||||
| 25A | W10848812 | Foot, Front (right) (Replaces: W10618104) |
|
$ 29.44 | |||||
| 29A | W10536161 | Cover, Side Trim (right) (Replaces: W10327368) |
|
$ 45.56 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10520716 | Insulation, Wrap |
|
- | |||||
| NI | W11688333 | Insulation, Back (Replaces: W10282945) |
|
- |
