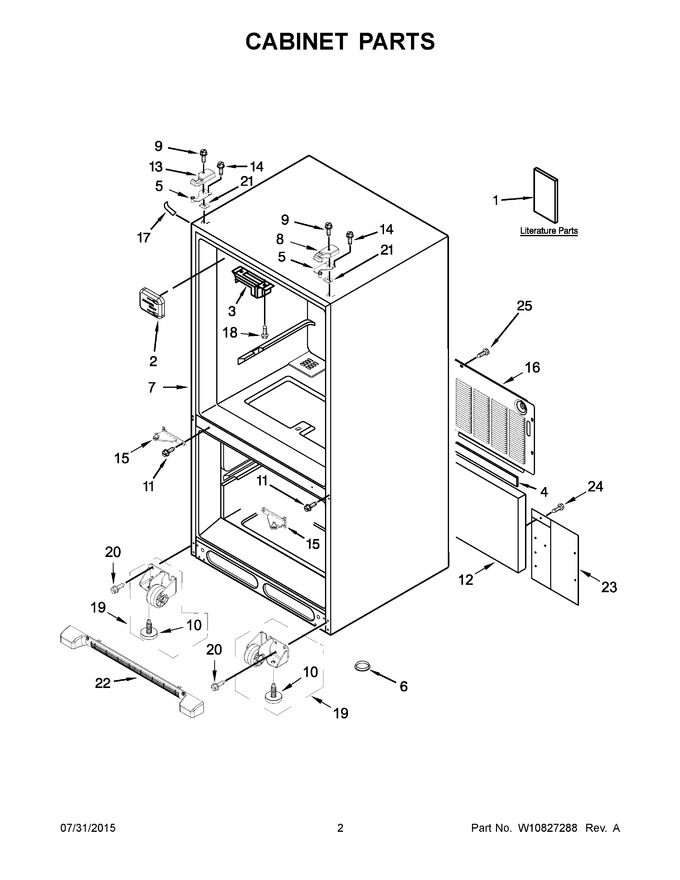

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10747215 | Tech Sheet |
|
- | |||||
| 2 | WP67001098 | Cover, Fill Tube (Replaces: 12477501) |
|
$ 7.59 | |||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 5 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204EDN) |
|
$ 28.73 | |||||
| 6 | A3076901 | Black |
|
$ 5.70 | |||||
| 7 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 8 | WPW10191117 | Cover, Right Hinge (grey) (Replaces: 12962302APN) |
|
$ 20.75 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 11 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 75.34 | |||||
| 12 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 13 | WPW10337648 | Cover, Left Hinge (grey) (Replaces: W10337648) |
|
$ 20.81 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W10917988 | Hinge, Center Left Hand (grey) (Replaces: 13000001AP) |
|
Immediately | $ 86.07 | ||||
| 16 | W10212541 | Cover, Unit |
|
- | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | 12999501 | Shim, Hinge (left Hand) |
|
$ 89.58 | |||||
| 22 | WPW10534155 | Grille, Toe (grey) (Replaces: W10534155) |
|
Immediately | $ 107.60 | ||||
| 23 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 19.22 | |||||
| 24 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 15A | W10917988 | Hinge, Center Right Hand (grey) (Replaces: 13000002AP) |
|
Immediately | $ 86.07 | ||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 1A | W10747191 | Use & Care Guide |
|
- | |||||
| 21A | 12999502 | Shim, Hinge (right Hand) |
|
$ 90.54 | |||||
| 5A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205EDN) |
|
Immediately | $ 28.71 |
