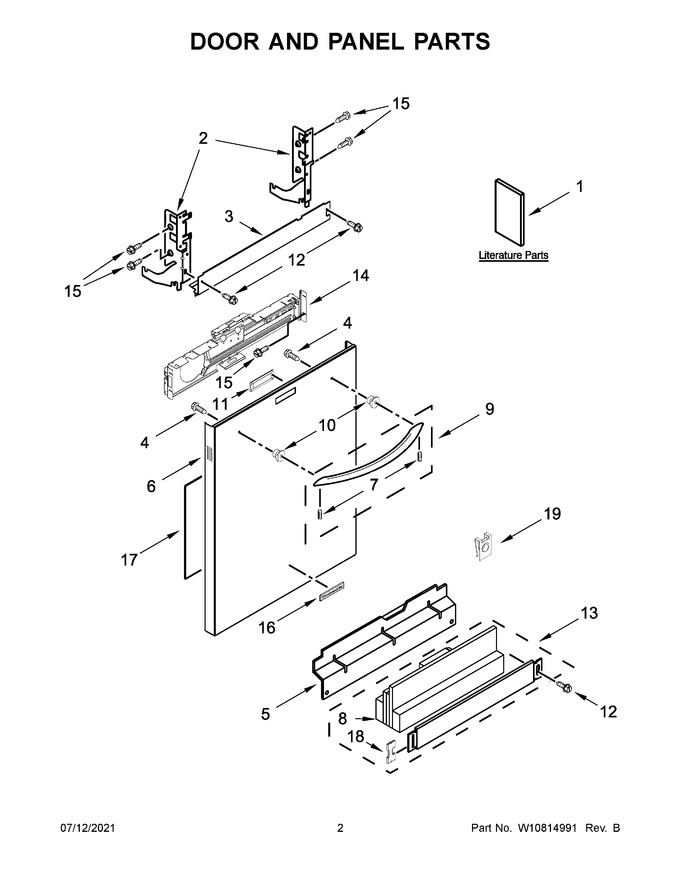

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 128.15 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10844380) |
|
Immediately | $ 29.59 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10852733) |
|
Immediately | $ 38.03 | ||||
| 6 | WPW10195869 | Panel, Front (includes 4, 10, 11 & 16) (stainless) (Replaces: W10195869) |
|
$ 352.77 | |||||
| 7 | WPW10307614 | Screw (Replaces: W10307614) |
|
Immediately | $ 6.80 | ||||
| 8 | W10831329 | Insulation, Four Layer (Replaces: W10518815) |
|
Immediately | $ 38.97 | ||||
| 9 | W11177713 | Handle Assembly (stainless) (Replaces: W10786142) |
|
- | |||||
| 10 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 7.98 | ||||
| 11 | W10457051 | Window, Display |
|
$ 60.49 | |||||
| 12 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 7.36 | ||||
| 13 | W10871196 | Toe Panel (black) (Replaces: W10586590) |
|
$ 156.64 | |||||
| 14 | WPW10350242 | Bracket, Control (Replaces: W10350242) |
|
$ 79.49 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 7.43 | ||||
| 16 | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 52.48 | |||||
| 17 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 58.73 | ||||
| 18 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 10.09 | |||||
| 19 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 7.78 | |||||
| 1A | W10656165 | Energy Guide |
|
- | |||||
| 1B | W10656163 | Use & Care Guide |
|
- | |||||
| 1C | W11266098 | Tech Sheet |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 128.02 |
