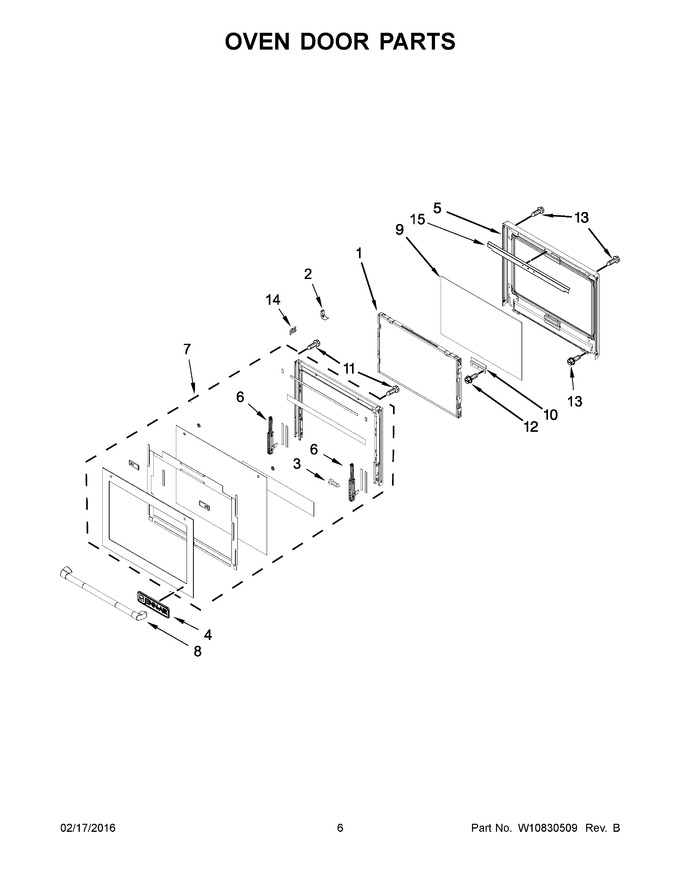

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347596 | Assembly, Window Pack (Replaces: W10347596) |
|
Immediately | $ 290.75 | ||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 149.18 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 4 | WPW10159578 | Badge (stainless) (Replaces: W10159578) |
|
Immediately | $ 79.69 | ||||
| 5 | WPW10709147 | Assembly, Liner (Replaces: W10709147) |
|
$ 330.02 | |||||
| 6 | W10825778 | Hinge, Door (Replaces: W10639069) |
|
Immediately | $ 101.57 | ||||
| 7 | W10798378 | Assembly, Door (stainless) (Replaces: W10725071) |
|
Immediately | $ 717.10 | ||||
| 8 | W11234410 | Assembly, Handle (stainless) (Replaces: W10483386) |
|
$ 213.73 | |||||
| 9 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
Immediately | $ 222.94 | ||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 147.47 | |||||
| 11 | W10530626 | Screw |
|
$ 15.08 | |||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 16.74 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 158.53 | ||||
| 15 | W10669415 | Shield, Door Liner |
|
$ 62.60 |
