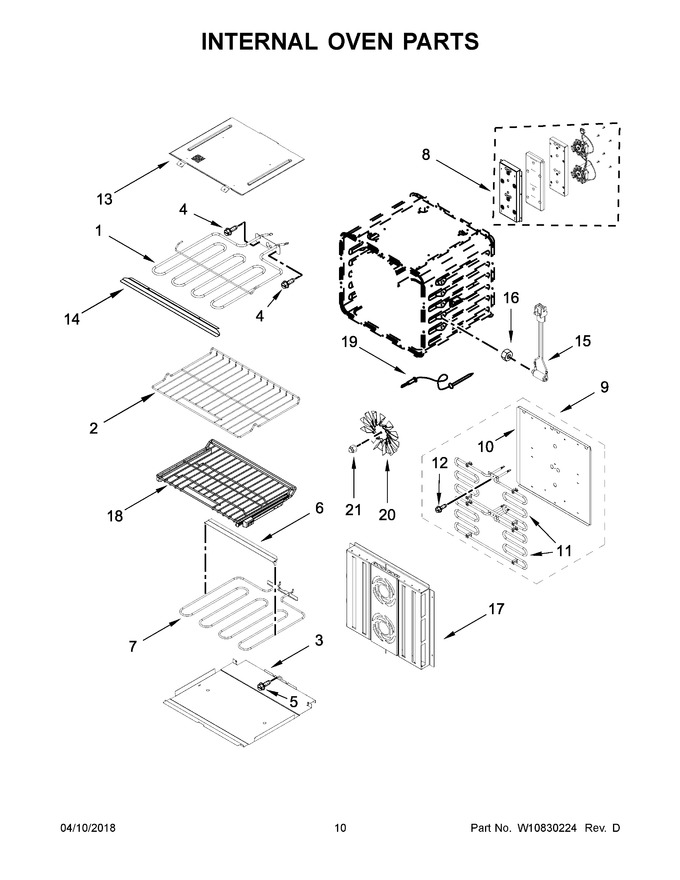

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804429 | Element, Broil (Replaces: W10764078) |
|
Immediately | $ 137.62 | ||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 164.66 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 176.25 | |||||
| 4 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.81 | |||||
| 4 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 42.72 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10546517) |
|
Immediately | $ 131.81 | ||||
| 8 | W10853996 | Assembly, Convection Motor |
|
$ 341.95 | |||||
| 8 | W11255349 | Assembly, Convection Motor (Replaces: W10559986) |
|
Immediately | $ 371.93 | ||||
| 9 | W11098805 | Assembly, Convection Element (Replaces: W10854021) |
|
$ 231.32 | |||||
| 9 | W11313747 | Assembly, Baffle (Replaces: W10559988) |
|
$ 214.88 | |||||
| 10 | W10853277 | Shield, Convection |
|
$ 84.79 | |||||
| 10 | W10559982 | Shield, Convection |
|
Immediately | $ 98.44 | ||||
| 11 | W10663735 | Element, Convection |
|
$ 277.74 | |||||
| 12 | WP489464 | Screw (Replaces: W10236129) |
|
Immediately | $ 7.54 | ||||
| 13 | W11290999 | Shield, Broil Element (Replaces: W10911205) |
|
$ 189.86 | |||||
| 13 | W11290999 | Shield, Broil Element (Replaces: W10318164) |
|
$ 189.86 | |||||
| 14 | W10588737 | Shield, Broil Front |
|
$ 94.86 | |||||
| 15 | W11220388 | Jack, Meat Probe (Replaces: W10696226) |
|
Immediately | $ 62.67 | ||||
| 16 | W11231343 | Nut, Locking (Replaces: W11033111) |
|
$ 12.12 | |||||
| 16 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 5.77 | |||||
| 17 | W11313747 | Assembly, Baffle (Replaces: W10559988) |
|
$ 214.88 | |||||
| 17 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.57 | |||||
| 18 | W11256305 | Rack, Sliding (Replaces: W10840297) |
|
$ 329.03 | |||||
| 19 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 20 | W11251691 | Blade, Convection Fan (Replaces: W10213746) |
|
$ 297.03 | |||||
| 21 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.83 | |||||
| 21A | W10213749 | Nut, Acorn (rh) |
|
$ 14.53 |
