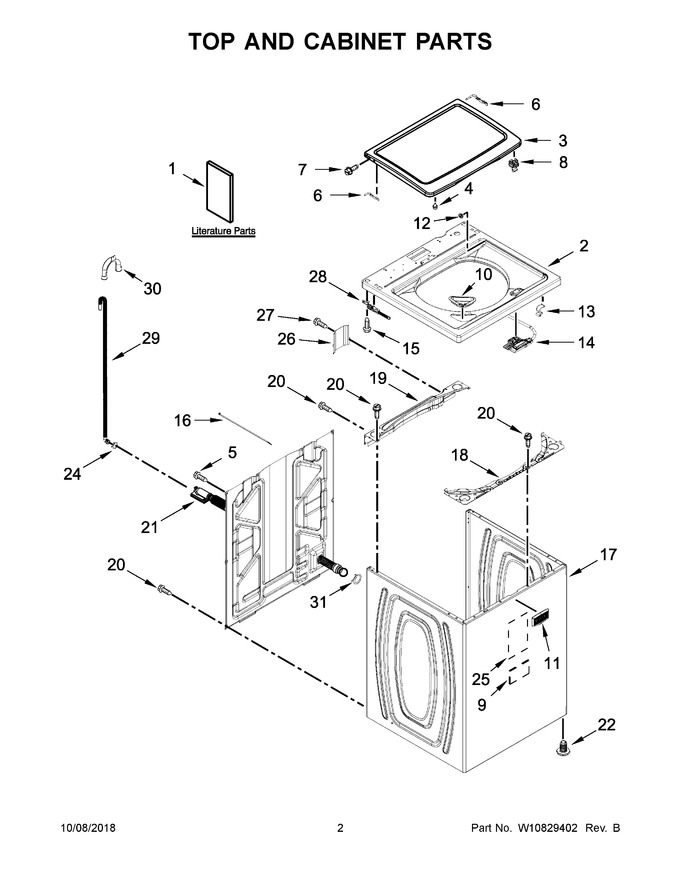

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10682737 | Instructions, Installation |
|
- | |||||
| 2 | W11233067 | Top (white) (Replaces: W10768758) |
|
$ 356.12 | |||||
| 3 | W11117421 | Lid (white) (Replaces: W10793620) |
|
Immediately | $ 427.12 | ||||
| 4 | WP9724509 | Bumper (Replaces: 9724509) |
|
Immediately | $ 7.50 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 6 | WP8563965 | Hinge, Wire (left) (Replaces: 8563965) |
|
Immediately | $ 27.82 | ||||
| 7 | W11404293 | Screw (Replaces: W10339706) |
|
Immediately | $ 13.27 | ||||
| 8 | W11252738 | Strike, Lid Lock (white) (Replaces: W11199930) |
|
Immediately | $ 24.73 | ||||
| 8 | W11252738 | Strike, Lid Lock (white) (Replaces: W10793616) |
|
Immediately | $ 24.73 | ||||
| 9 | W11700520 | Screw (Replaces: 3400061) |
|
$ 12.85 | |||||
| 9 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 10 | W10854969 | Bezel, Bleach Dispenser (white) (Replaces: W10240977) |
|
$ 98.91 | |||||
| 11 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 12 | W10293653 | Bearing, Lid Hinge (left Hand) |
|
$ 15.72 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 14 | W11307244 | Latch, Lid Lock Assembly (Replaces: W10682535) |
|
Immediately | $ 172.58 | ||||
| 15 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 17 | W10676680 | Cabinet (white) |
|
$ 366.17 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W11172902) |
|
$ 71.81 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (white) (Replaces: W10724131) |
|
$ 71.81 | |||||
| 19 | W11712680 | Brace, Cabinet Top - Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 20 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 20 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 21 | W11035296 | Hose, Internal Drain (Replaces: W10786886) |
|
$ 55.08 | |||||
| 22 | WPW10687506 | Foot Assembly, Leveling (Replaces: W10687506) |
|
Immediately | $ 23.46 | ||||
| 23 | W11417171 | Panel, Rear (Replaces: W10612644) |
|
$ 249.90 | |||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 25 | W11611669 | Absorber, Impact (Replaces: W10834527) |
|
$ 20.95 | |||||
| 25 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.26 | |||||
| 26 | W10648853 | Cover, Harness |
|
- | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 28 | W10270398 | Hinge, Lid (left) |
|
$ 122.27 | |||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W10221546) |
|
Immediately | $ 28.86 | ||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 28.86 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 31 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 7.93 | ||||
| 32 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 33 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 21.04 | ||||
| 34 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 12A | W10293293 | Bearing, Lid Hinge (right Hand) |
|
$ 15.72 | |||||
| 1A | W10740624 | Tech Sheet |
|
- | |||||
| 1B | W10783959 | Owners Manual |
|
- | |||||
| 1C | W10063022 | Energy Guide |
|
- | |||||
| 1C | W11253571 | Energy Guide |
|
- | |||||
| 1D | W10783949 | Quick Start Guide |
|
- | |||||
| 28A | W10270399 | Hinge, Lid (right) |
|
$ 118.72 | |||||
| 6A | WP8572974 | Hinge, Wire (right) (Replaces: 8572974) |
|
Immediately | $ 27.45 |
