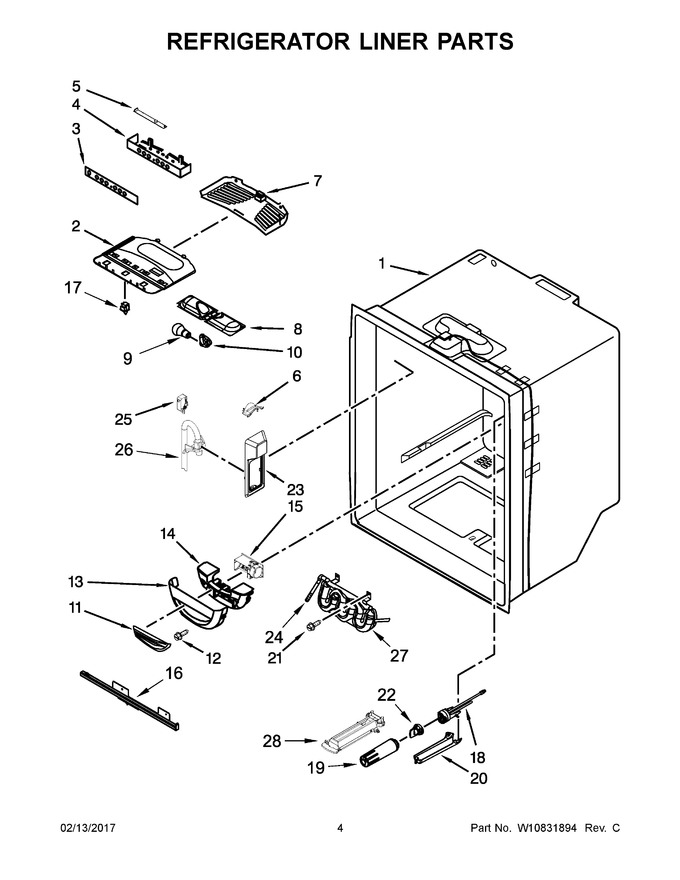

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464766 | Module, Light |
|
Immediately | $ 102.33 | ||||
| 3 | W11422122 | Overlay (Replaces: W10808269) |
|
$ 257.23 | |||||
| 4 | W11416469 | Module, Control (Replaces: W10464767) |
|
Immediately | $ 211.36 | ||||
| 5 | WPW10116216 | Board, Control (Replaces: W10116216) |
|
Immediately | $ 289.67 | ||||
| 6 | W10116529 | Cover, Waterline |
|
$ 75.79 | |||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501) |
|
$ 95.42 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 105.97 | ||||
| 9 | W11338583 | Lamp, Led (Replaces: W10805744) |
|
Immediately | $ 96.49 | ||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 12.48 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
$ 7.70 | |||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 11.90 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 106.79 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 45.14 | |||||
| 15 | WPW10594329 | Control, Damper (Replaces: W10594329) |
|
Immediately | $ 160.75 | ||||
| 16 | 2302952 | Slide, Crisper (left Hand) |
|
Immediately | $ 286.28 | ||||
| 17 | W11291138 | Switch, Rocker (Replaces: 12466104) |
|
Immediately | $ 33.00 | ||||
| 18 | W11808483 | Head, Water Filter (includes Bypass Cartridge) (Replaces: W10609243) |
|
Immediately | $ 139.39 | ||||
| 19 | EDR4RXD1B | Filter, Water (Replaces: W10735404) |
|
Immediately | $ 49.99 | ||||
| 20 | WP67006331 | Cover, Filter (Replaces: 12960301N) |
|
Immediately | $ 106.53 | ||||
| 21 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 22 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 45.65 | ||||
| 23 | W11243624 | Facade, Dispenser (Replaces: W10204292) |
|
Immediately | $ 102.09 | ||||
| 24 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 33.29 | ||||
| 25 | WP12575502 | Switch, Limit (Replaces: 12575502) |
|
Immediately | $ 58.62 | ||||
| 26 | W10117324 | Waterline, Dispenser |
|
$ 44.30 | |||||
| 27 | W11361728 | Tank, Water (Replaces: 12706109) |
|
Immediately | $ 155.12 | ||||
| 28 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 94.85 | ||||
| 16A | 2302953 | Slide, Crisper (right Hand) |
|
Immediately | $ 286.57 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11084235 | Harness, Control (refrigerator) (Replaces: W10391289) |
|
Immediately | $ 126.80 |
