01 - Cover Sheet


02 - Top And Cabinet Parts

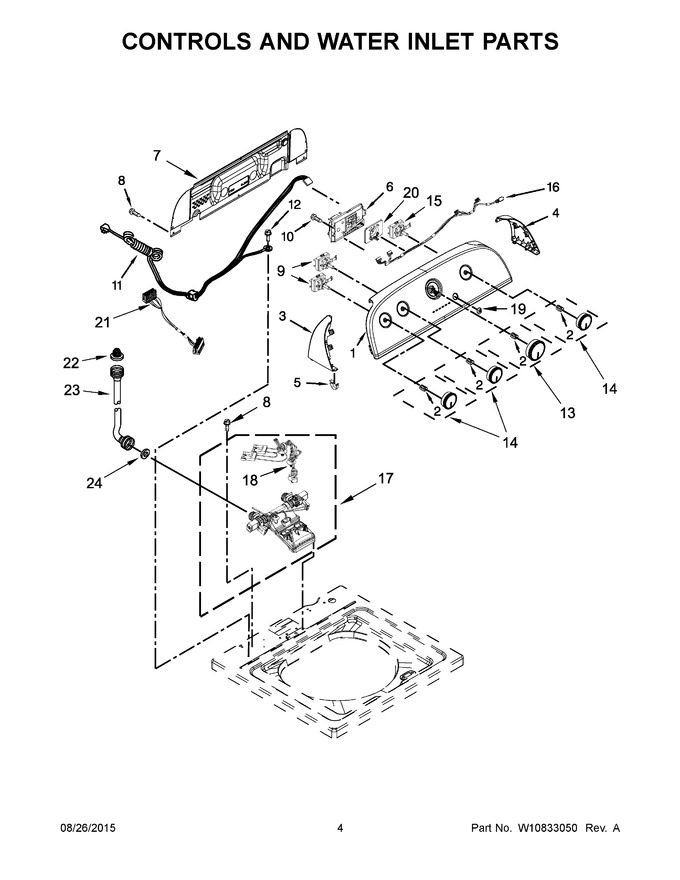

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10643280		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 58.22
4	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 57.91
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10723769		Control Unit Assembly, Machine And Motor				$ 240.82
7	W10552335		Panel, Console Rear Cover				$ 308.85
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
9	WPW10285512		Temperature Control   (Replaces: W10285512)			Immediately	$ 171.42
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	WPW10525194		Cord, Power   (Replaces: W10525194)				$ 147.07
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11501455		Knob, Timer (white/metallic)   (Replaces: W10576634)				$ 41.20
14	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
15	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
16	W10579238		Harness, Upper				$ 24.62
17	WPW10683653		Inlet Assembly, Water   (Replaces: W10683653)				$ 194.84
18	W10876654		Harness, Valve   (Replaces: W10684972)				$ 175.43
19	W11084340		Grommet, Push To Start   (Replaces: W10598040)				$ 66.47
20	WPW10596298		Button, Push To Start   (Replaces: W10596298)				$ 65.68
21	W10582444		Harness, Jumper		Appelez-nous	-
22	285452A		Washer, Filter   (Replaces: W10810281)			Immediately	$ 8.72
23	WP89503		Hose, Water Inlet (cold)   (Replaces: W10194210)			Immediately	$ 21.68
24	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 7.34
23A	WP89503		Hose, Water Inlet (hot)   (Replaces: W10194211)			Immediately	$ 21.68
