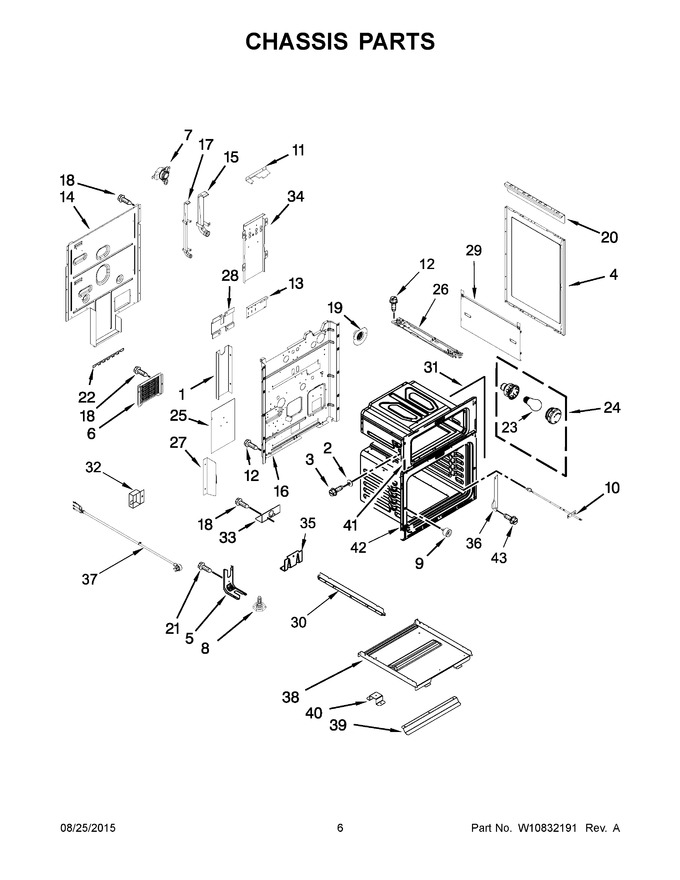

04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10332459		Shield, Heat		Appelez-nous	-
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 75.44
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 7.25
4	W10832695		Panel, Side (black)   (Replaces: W10668723)			Immediately	$ 213.08
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.50
6	W10312612		Cover, Access (terminal Block)				$ 116.48
7	WP7403P899-60		Switch, High Limit   (Replaces: 7403P899-60)			Immediately	$ 190.35
8	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 26.57
9	W10105790		Bumper & Screw				$ 6.67
10	WP7430P044-60		Sensor, Oven   (Replaces: 7430P044-60)			Immediately	$ 230.54
11	W10268559		Cover, Lower Wire		Appelez-nous	-
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
13	W10332449		Shield, Cord				$ 66.06
14	WPW10261386		Cover, Main Wire   (Replaces: W10261386)				$ 175.23
15	W10337391		Tube, Vent (upper)				$ 65.03
16	W10668730		Back, Main			Immediately	$ 205.87
17	WPW10323793		Tube, Vent (lower)   (Replaces: W10323793)				$ 103.37
18	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
19	W10322408		Adapter, Vent Tube				$ 116.13
20	W10319087		Bracket, U Channel				$ 74.79
21	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
22	8036P012-60		Shield, Power Cord				$ 32.80
23	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
24	W11594027		Assembly, Light   (Replaces: W10454648)			Immediately	$ 78.31
25	W10311987		Shield, Cord (right)		Appelez-nous	-
26	W11166856		Lock, Rear Mount   (Replaces: W10683517)			Immediately	$ 292.00
27	W10268560		Cover, Wire Lower				$ 65.75
28	7003P104-60		Insulator, Heat Shield		Appelez-nous	-
29	W10538516		Shield, Side Insulation				$ 128.27
30	W10357697		Bracket, Side Panel				$ 21.91
31	W10337392		Gasket, Oven Door (upper)			Immediately	$ 141.03
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W10190166		Bracket, Power Supply				$ 8.73
34	W10261388		Bracket, Terminal				$ 66.01
35	W10260703		Support, Lower Oven		Appelez-nous	-
36	W10410463		Cover, Hinge (left)				$ 89.04
37	W11226497		Cord, Power   (Replaces: W10233363)			Immediately	$ 99.50
38	W10548601		Pan, Element				$ 139.48
39	W10253470		Bracket, Retaining				$ 73.03
40	W10260545		Clip, Retaining				$ 12.44
41	W10606341		Front, Main (upper)				$ 162.68
42	WPW10308654		Front, Main (lower)   (Replaces: W10308654)				$ 275.25
43	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
31A	WPW10269069		Gasket, Oven Door (lower)   (Replaces: W10269069)			Immediately	$ 171.72
36A	W10410461		Cover, Hinge (right)				$ 85.37
NI	WPW10271637		Insulation, Floor   (Replaces: W10271637)				$ 100.33
NI	W10308393		Insulation, Wrapper				$ 78.00
NI	WPW10322111		Insulation, Back   (Replaces: W10322111)				$ 125.64
NI	WPW10204079		Insulation, Middle   (Replaces: W10204079)				$ 106.85
NI	W11685361		Insulation, Main Front Strip   (Replaces: W10204085)				$ 31.99
NI	W11684900		Insulation, Hidden Bake Pouch   (Replaces: W10272326)				$ 31.17
