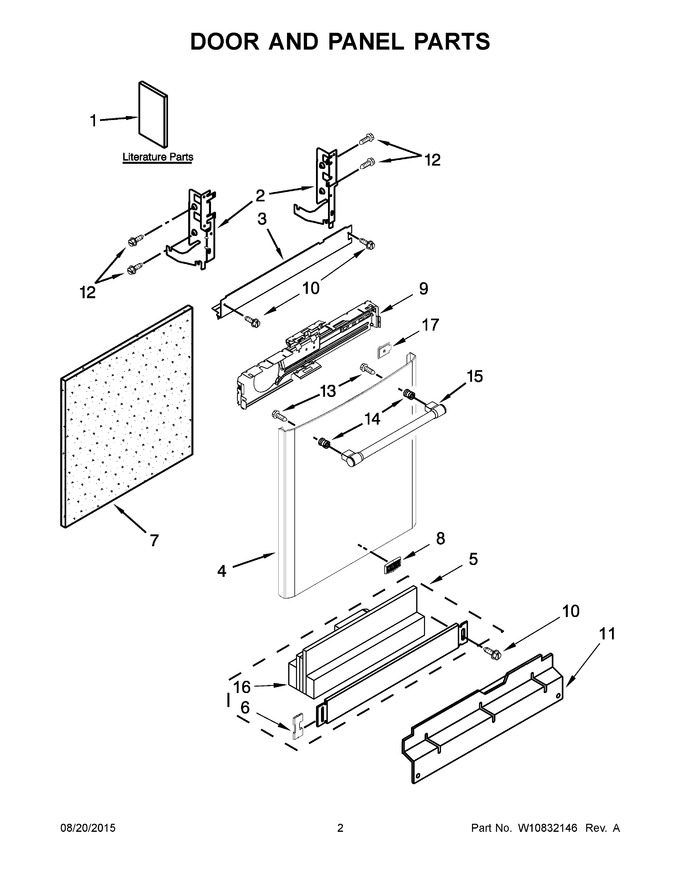

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
3	W10850371		Barrier, Vapor   (Replaces: W10726645)			Immediately	$ 29.59
4	W10770227		Panel Front (includes Items 8, 13, 14 & 17) (stainless)				$ 332.78
5	W10871196		Toe Panel (black)   (Replaces: W10737729)				$ 156.64
6	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.09
7	W11126003		Insulation, Front Panel   (Replaces: W10620222)			Immediately	$ 58.73
8	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
9	W11116870		Bracket, Control   (Replaces: W10641745)				$ 80.96
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 7.36
11	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 38.03
12	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
13	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 6.80
14	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 7.98
15	WPW10687840		Handle (stainless)   (Replaces: W10687840)				$ 241.61
16	W11223838		Insulation, Four Layer   (Replaces: W10735304)			Immediately	$ 39.52
17	W10319007		Light, Pipe				$ 64.80
1A	W10786643		Energy Guide		Appelez-nous	-
1B	W10708712		Use & Care Guide		Appelez-nous	-
1C	W10751162		Tech Sheet, English		Appelez-nous	-
1D	W10751165		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02
