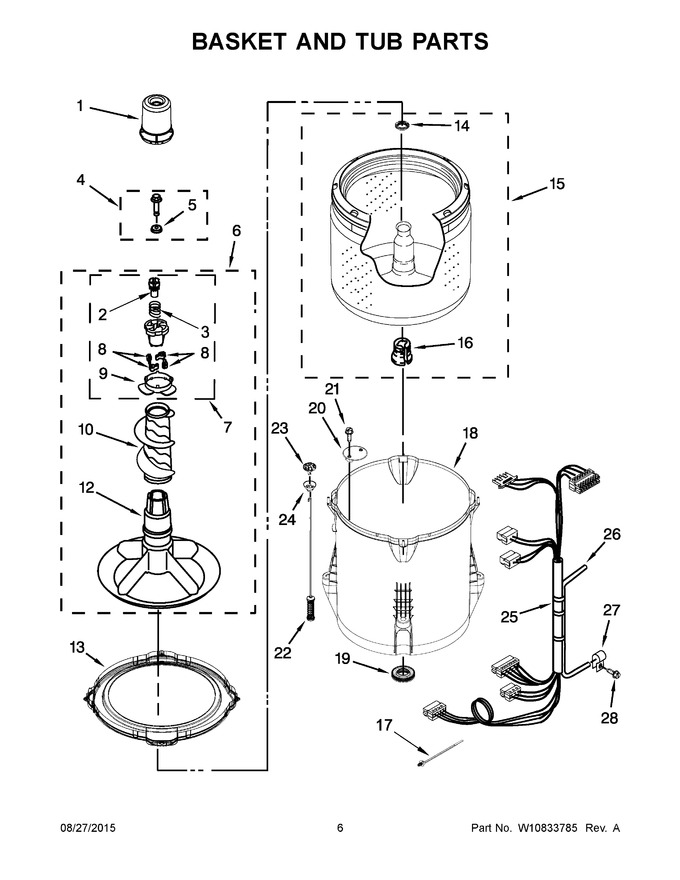

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8528278 | Dispenser, Fabric Softener (Replaces: 8528278) |
|
Immediately | $ 17.51 | ||||
| 2 | WP8533540 | Retainer, Spring (Replaces: 8533540) |
|
$ 7.42 | |||||
| 3 | WP3946997 | Spring, Compression (Replaces: 3946997) |
|
$ 25.06 | |||||
| 4 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.77 | ||||
| 5 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 6 | WP8538246 | Agitator (complete) (Replaces: 8538246) |
|
$ 331.58 | |||||
| 7 | WP8537433 | Cam, Driven (Replaces: 8537433) |
|
Immediately | $ 97.57 | ||||
| 8 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.28 | ||||
| 9 | WP8055141 | Bearing, Cam (Replaces: 8055141) |
|
Immediately | $ 7.32 | ||||
| 10 | W11480892 | Auger, Agitator (Replaces: 3946996) |
|
Immediately | $ 91.59 | ||||
| 12 | WP3947517 | Agitator Assembly (Replaces: 3947517) |
|
$ 183.72 | |||||
| 13 | WPW10215108 | Ring, Tub (Replaces: W10215108) |
|
$ 191.05 | |||||
| 14 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 10.40 | ||||
| 15 | W10349185 | Basket Assembly (Replaces: W10358261) |
|
$ 350.41 | |||||
| 16 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 17 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.47 | |||||
| 18 | W10371566 | Tub (includes Tub Seal) (Replaces: W10238320) |
|
$ 320.71 | |||||
| 19 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 84.15 | ||||
| 20 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 21 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 22 | W10780048 | Damper Assembly, Tub Suspension (set Of 4-includes Ball & Bushing) (Replaces: W10748952) |
|
Immediately | $ 84.13 | ||||
| 23 | W10583768 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) |
|
- | |||||
| 24 | W10256551 | Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) |
|
- | |||||
| 25 | W10610077 | Harness, Lower (includes Pressure Hose & Cable Tie) |
|
- | |||||
| 26 | WP353244 | Hose, Pressure Switch (Replaces: W10297436) |
|
Immediately | $ 78.00 | ||||
| 27 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 28 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 |
