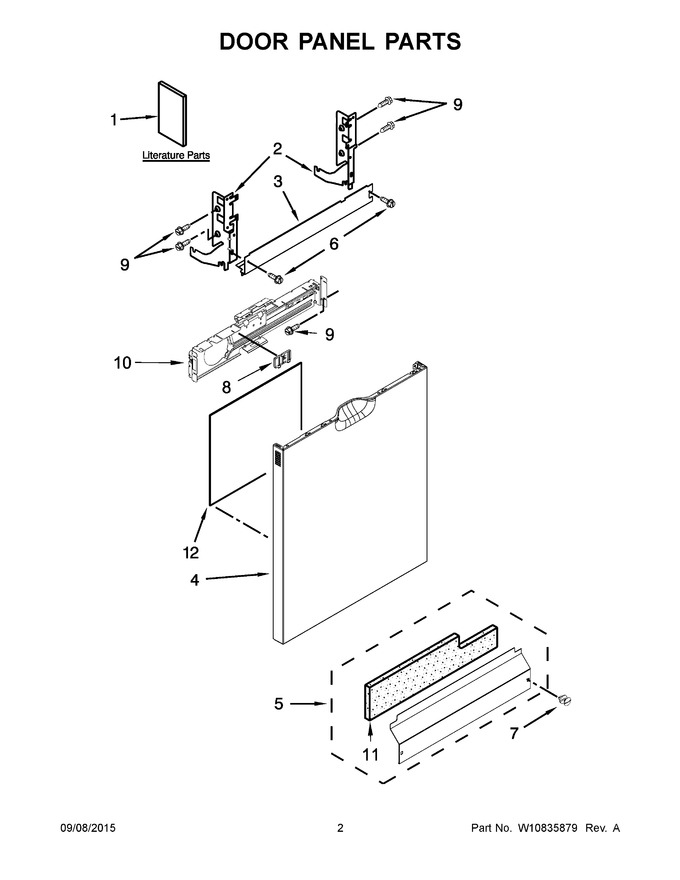

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10726645)			Immediately	$ 32.88
4	W10671859		Panel Front (stainless)				$ 415.46
5	W10827608		Access Panel (black)   (Replaces: W10799073)				$ 180.76
6	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
8	W10463662		Spacer, Control Bracket Panel				$ 49.41
9	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
10	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
11	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
12	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
1A	W10671814		Energy Guide		Appelez-nous	-
1B	W10671841		Use & Care Guide		Appelez-nous	-
1C	W10750905		Tech Sheet, English		Appelez-nous	-
1D	W10750906		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
