SELECT A DIAGRAM

01 - Cover Sheet

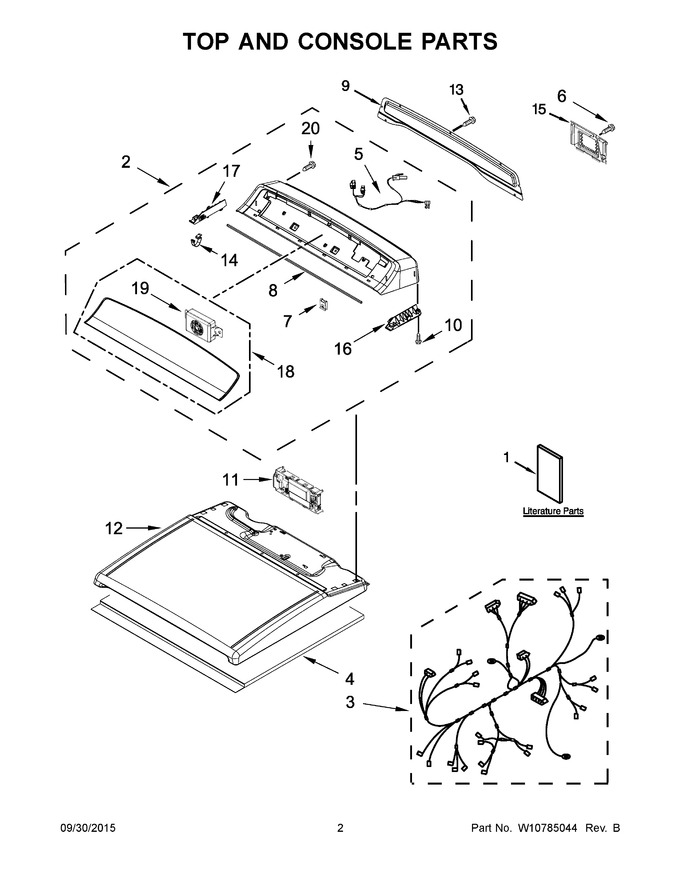

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W10847565		Console Assembly (complete) (chrome Shadow)   (Replaces: W10682654)				$ 757.62
3	W10706042		Wiring Harness, Main				$ 334.65
4	W10123956		Panel, Dampening		Appelez-nous	-
5	W10593673		Harness, User Interface				$ 38.57
6	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	WPW10739349		Control, Electronic   (Replaces: W10739349)				$ 293.14
12	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 358.85
13	W10728156		Screw		Appelez-nous	-
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 104.04
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 153.63
18	W10507946		Fascia, Console				$ 353.26
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
20	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
1A	W10680139		Guide, Use And Care		Appelez-nous	-
1B	W10680150		Tech Sheet		Appelez-nous	-
1C	W10720369		Quickstart Guide		Appelez-nous	-
1D	W10701469		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
