SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Airflow And Control


04 - Cabinet


05 - Accessory Kit


06 - Optional

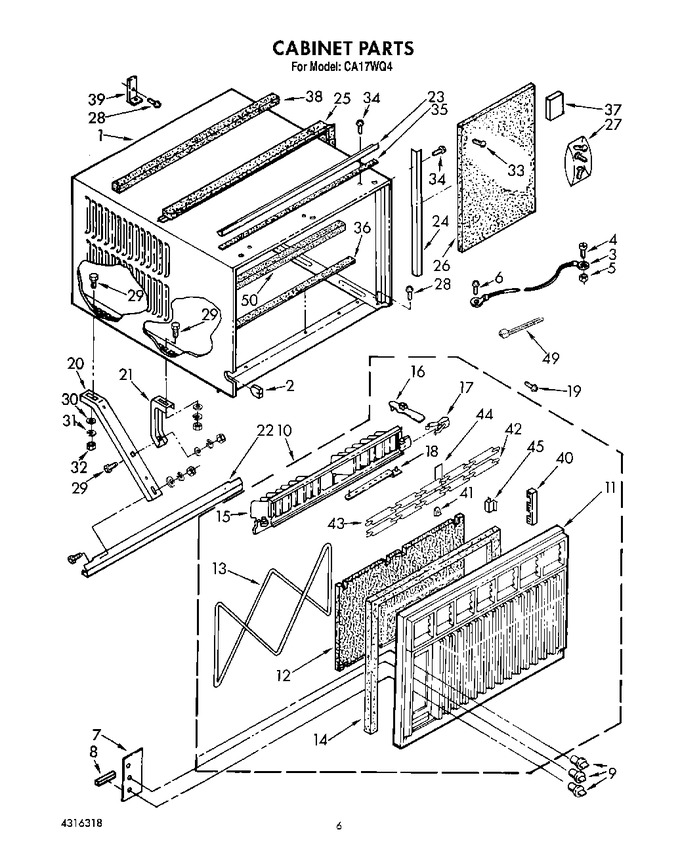

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157893		Cabinet		Appelez-nous	-
2	647849		Grommet, Cable		Appelez-nous	-
3	857022		Wire, Ground		Appelez-nous	-
4	488853		Screw, 8-32 X 3/8		Appelez-nous	-
5	WP486255		Nut, 8-32   (Replaces: 486529)				$ 5.82
6	488854		Screw, 8-32 X 3/8		Appelez-nous	-
7	1162141		Plate, Escutcheon		Appelez-nous	-
8	469175		Spacer, Plate (3)		Appelez-nous	-
9	953054		Knob, Control (2)		Appelez-nous	-
10	1159942		Front, Cabinet (assembly)		Appelez-nous	-
11	1159844		Front, Cabinet		Appelez-nous	-
12	649958		Filter, Air		Appelez-nous	-
13	476707		Retainer, Filter		Appelez-nous	-
14	649726		Seal, Front (bottom)		Appelez-nous	-
14	649725		Seal, Front (top & Sides)		Appelez-nous	-
15	649957		Louver, Vertical		Appelez-nous	-
16	947267		Handle, Louver		Appelez-nous	-
17	641484		Clip (2)				$ 150.14
18	953063		Link (2)		Appelez-nous	-
19	1157141		Screw, Front (2)		Appelez-nous	-
20	649945		Support, Cabinet (2)		Appelez-nous	-
21	649946		Retainer, Support (2)		Appelez-nous	-
22	649947		Bracket, Support		Appelez-nous	-
23	644271		Angle, Top		Appelez-nous	-
24	644272		Angle, Side (2)		Appelez-nous	-
25	644288		Gasket, Sash		Appelez-nous	-
26	644303		Board, Filler		Appelez-nous	-
27	993848		Bag, Accessory		Appelez-nous	-
28	487371		Screw, No.10 Wood X 3/4``		Appelez-nous	-
29	488750		Bolt, 1/4-20 X 3/4 (6)		Appelez-nous	-
30	488808		Washer (6)		Appelez-nous	-
31	486009		Washer, Lock (6)		Appelez-nous	-
32	486035		Nut, Hex 1/4-20 (6)		Appelez-nous	-
33	WP965173		Screw, No.8 S.m. X 3/8``   (Replaces: 488017)			Immediately	$ 10.68
34	WP308685		Screw, No.10 S.m. X 1/2``   (Replaces: 488720)			Immediately	$ 7.08
35	855265		Seal, Strip		Appelez-nous	-
36	852220		Seal, Cabinet Bottom		Appelez-nous	-
37	995274		Block, Spacer (4)		Appelez-nous	-
38	469877		Seal, Meeting		Appelez-nous	-
39	644288		Bracket, Window Lock		Appelez-nous	-
40	00649955		Rack, Louver (2)   (Replaces: 649955)				$ 488.32
41	1157140		Clip, Front (2)		Appelez-nous	-
42	947268		Louver, Notched		Appelez-nous	-
43	947269		Louver, Horizontal (4)		Appelez-nous	-
44	855998		Retainer, Louver (4)		Appelez-nous	-
45	855999		Clip, Louver (4)		Appelez-nous	-
49	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
50	1157054		Insulation, Cabinet (right Side)		Appelez-nous	-
50	1157053		Insulation, Cabinet (top)		Appelez-nous	-
50	1157055		Insulation, Cabinet (left Side)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
