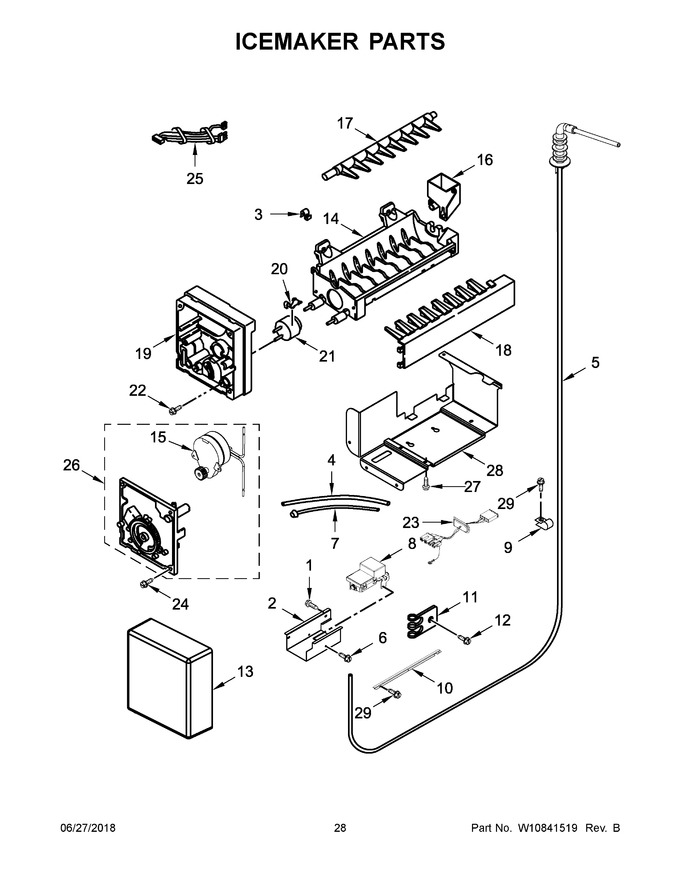

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 2 | 2320601 | Shield, Water Valve |
|
$ 108.14 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 61.10 | |||||
| 5 | W11212166 | Fitting, Water (Replaces: W10357286) |
|
Immediately | $ 36.84 | ||||
| 6 | 00487294 | Screw (Replaces: 487294) |
|
$ 157.58 | |||||
| 7 | W11533506 | Tube, Filter Outlet (Replaces: W10683737) |
|
$ 29.84 | |||||
| 8 | W11243758 | Valve, Inlet (Replaces: W10820321) |
|
Immediately | $ 274.73 | ||||
| 9 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 10 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 11 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 12 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 13 | W10801567 | Cover, Icemaker |
|
- | |||||
| 14 | WPW10190929 | Assembly, Mold And Heater (also Order 542638) (Replaces: 628228) |
|
$ 210.17 | |||||
| 15 | N/P | Motor, (not Serviceable Order Item 26) |
|
- | |||||
| 16 | W11284157 | Cup, Fill (Replaces: W11130406) |
|
$ 67.49 | |||||
| 17 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 18 | W10818367 | Stripper, Ice |
|
$ 80.05 | |||||
| 19 | W10790252 | Support, Housing |
|
- | |||||
| 20 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 21 | WP627985 | Thermostat (Replaces: W10290336) |
|
$ 103.18 | |||||
| 22 | W10001280 | Screw |
|
- | |||||
| 23 | W10279391 | Assembly, Smart Valve Wire |
|
$ 120.77 | |||||
| 24 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 25 | W10508659 | Assembly, Icemaker Wire |
|
$ 120.77 | |||||
| 26 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 143.80 | ||||
| 27 | W10784922 | Screw (black) |
|
- | |||||
| 28 | W10788852 | Bracket, Icemaker Mounting |
|
$ 147.45 | |||||
| 29 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 100 | W11579388 | Complete Icemaker Assembly (Replaces: W10790819) |
|
Immediately | $ 261.90 |
