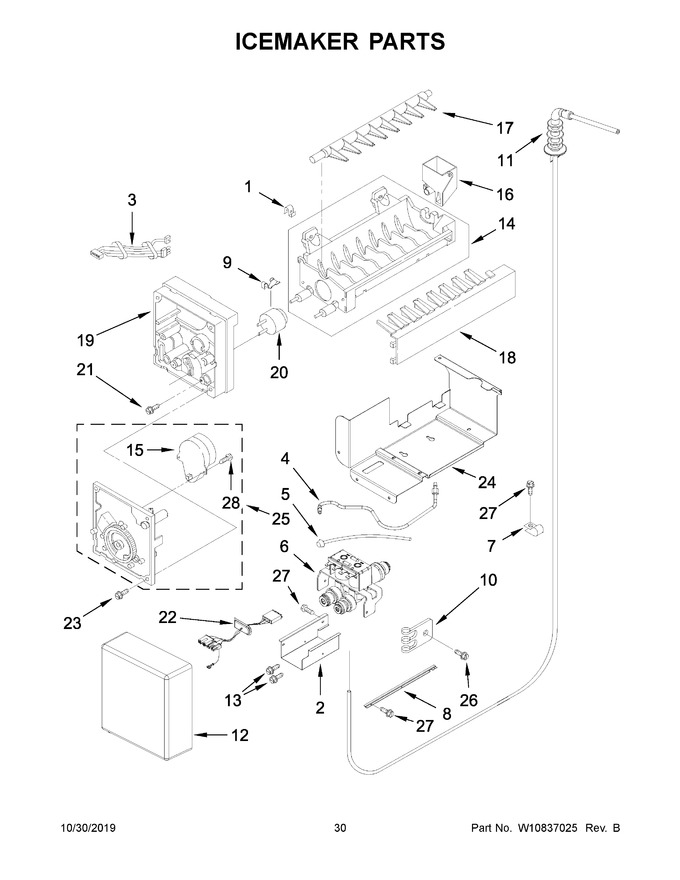

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP628379 |
 |
Clip, Thermal Fuse (Replaces: 628379) |
|
|
|
$ 9.99 |
|
|
| 2 |
2320601 |
|
Shield, Water Valve |
|
|
|
$ 108.14 |
|
|
| 3 |
W10508659 |
|
Assembly, Icemaker Wire |
|
|
|
$ 120.77 |
|
|
| 4 |
W11565275 |
 |
Tube, Filter Inlet (Replaces: W10296807) |
|
|
|
$ 61.10 |
|
|
| 5 |
W11533506 |
 |
Tube, Filter Outlet (Replaces: W10683737) |
|
|
|
$ 29.84 |
|
|
| 6 |
W11243758 |
 |
Valve, Inlet (Replaces: W10820321) |
|
|
Immediately |
$ 274.73 |
|
|
| 7 |
W10833902 |
|
Clamp, Tube (Replaces: 2221070) |
|
|
|
$ 10.39 |
|
|
| 8 |
2320559 |
|
Support, Valve |
|
|
|
$ 79.91 |
|
|
| 9 |
WP2315522 |
 |
Retainer, Thermostat (Replaces: 2315522) |
|
|
|
$ 10.44 |
|
|
| 10 |
WP488366 |
 |
Clip, Water Tube (Replaces: 2208136) |
|
|
|
$ 10.73 |
|
|
| 11 |
W11212166 |
 |
Fitting, Water (Replaces: W10357286) |
|
|
Immediately |
$ 36.84 |
|
|
| 12 |
W10801567 |
|
Cover, Icemaker |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WPW10141604 |
|
Screw (Replaces: W10141604) |
|
|
|
$ 7.97 |
|
|
| 14 |
WPW10190929 |
 |
Assembly, Mold And Heater (also Order 542638) (Replaces: 628228) |
|
|
|
$ 220.67 |
|
|
| 15 |
N/P |
|
Motor (not Available. Order Item 25) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
W11284157 |
|
Cup, Fill (Replaces: W11130406) |
|
|
|
$ 67.49 |
|
|
| 17 |
WP627843 |
 |
Ejector (Replaces: 627843) |
|
|
|
$ 79.00 |
|
|
| 18 |
W10818367 |
|
Stripper, Ice |
|
|
|
$ 80.05 |
|
|
| 19 |
W10790252 |
|
Support, Housing |
|
Appelez-nous
|
- |
|
|
|
| 20 |
WP627985 |
 |
Thermostat (Replaces: 627985) |
|
|
|
$ 103.18 |
|
|
| 21 |
W10001280 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 22 |
W10279391 |
|
Assembly, Smart Valve Wire |
|
|
|
$ 120.77 |
|
|
| 23 |
WP681249 |
 |
Screw (Replaces: 489276) |
|
|
Immediately |
$ 7.43 |
|
|
| 24 |
W10788852 |
|
Bracket, Icemaker Mounting |
|
|
|
$ 147.45 |
|
|
| 25 |
8201515 |
 |
Assembly, Module And Motor (Replaces: W10223929) |
|
|
Immediately |
$ 151.00 |
|
|
| 26 |
WPW10141645 |
|
Screw (Replaces: W10141645) |
|
|
|
$ 7.25 |
|
|
| 27 |
WP489069 |
 |
Screw (Replaces: 1157158) |
|
|
Immediately |
$ 7.56 |
|
|
| 28 |
489136 |
|
Screw |
|
|
|
$ 9.72 |
|
|
| 100 |
W11807270 |
|
Assembly, Complete Icemaker (Replaces: W10790817) |
|
|
|
$ 324.64 |
|
|
| NI |
N/P |
|
Following Parts Not Illustrated |
|
Appelez-nous
|
- |
|
|
|
| NI |
W10355016 |
|
Cleaner, Stainless Steel |
|
Appelez-nous
|
- |
|
|
|
| NI |
8003RP |
 |
Kit, Water Inlet |
|
|
Immediately |
$ 57.38 |
|
|
View Diagram in Separate Window
Print Part List
