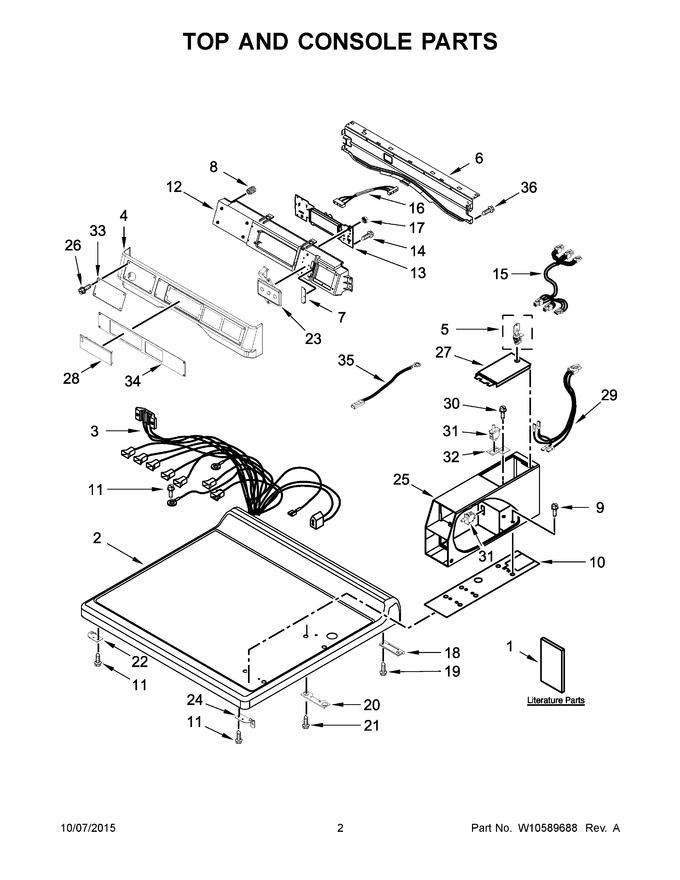

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10198150 | User Instruction |
|
- | |||||
| 2 | WPW10137411 | Top (white) (Replaces: W10137411) |
|
$ 410.00 | |||||
| 3 | W10745629 | Harness, Main |
|
- | |||||
| 4 | W10779120 | Console (outer) |
|
$ 138.64 | |||||
| 5 | W11315637 | 777 Lock And Key, Complete (Replaces: 8316526) |
|
Immediately | $ 76.34 | ||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | W10187276 | Seal, Console |
|
- | |||||
| 8 | WPW10189313 | Insert (Replaces: W10189313) |
|
$ 9.23 | |||||
| 9 | W11715721 | Bolt Meter Case Mounting (Replaces: 3349065) |
|
$ 7.48 | |||||
| 10 | W10137448 | Cushion, Meter Case |
|
- | |||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W11790400 | Console (inner) (Replaces: W10137427) |
|
- | |||||
| 13 | W10844575 | User-interface Assembly (Replaces: W10824283) |
|
- | |||||
| 14 | 489136 | Screw |
|
$ 10.80 | |||||
| 15 | W10166308 | Harness, Meter Case |
|
- | |||||
| 16 | W10166307 | Harness, Communication |
|
$ 41.32 | |||||
| 17 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 18 | WP8565018 | Hinge & Pin Assembly (white) (Replaces: 8565018) |
|
$ 115.34 | |||||
| 19 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 20 | 3347825 | Plate, Mounting |
|
- | |||||
| 21 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 22 | W10137445 | Bracket - Top Panel, Left |
|
- | |||||
| 23 | W11678131 | Switch, Membrane & Backer Plate (Replaces: W10787446) |
|
- | |||||
| 24 | W10137444 | Bracket - Top Panel, Right |
|
- | |||||
| 25 | WPW10171128 | Meter Case (Replaces: W10171128) |
|
$ 359.38 | |||||
| 26 | WPW10137457 | Screw (Replaces: W10137457) |
|
$ 7.85 | |||||
| 27 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 111.17 | |||||
| 28 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 69.59 | |||||
| 29 | W11096090 | Wire, Harness Sensor Switch (Replaces: W10211244) |
|
$ 13.40 | |||||
| 30 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 8.03 | |||||
| 31 | W11123448 | Switch, Vault Service Door (Replaces: W10133289) |
|
- | |||||
| 32 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- | |||||
| 33 | W10801805 | Fascia, Console |
|
- | |||||
| 34 | W11188532 | Dispenser, Fascia (Replaces: W10804029) |
|
$ 204.16 | |||||
| 35 | W10257051 | Jumper, Static |
|
- | |||||
| 36 | WP33001882 | Screw (Replaces: 337686) |
|
$ 83.71 | |||||
| 1A | W10590742 | Instructions, Installation |
|
- | |||||
| 1B | W10589718 | Tech Sheet |
|
- | |||||
| 1C | W10166388 | Wiring Diagram |
|
- |
