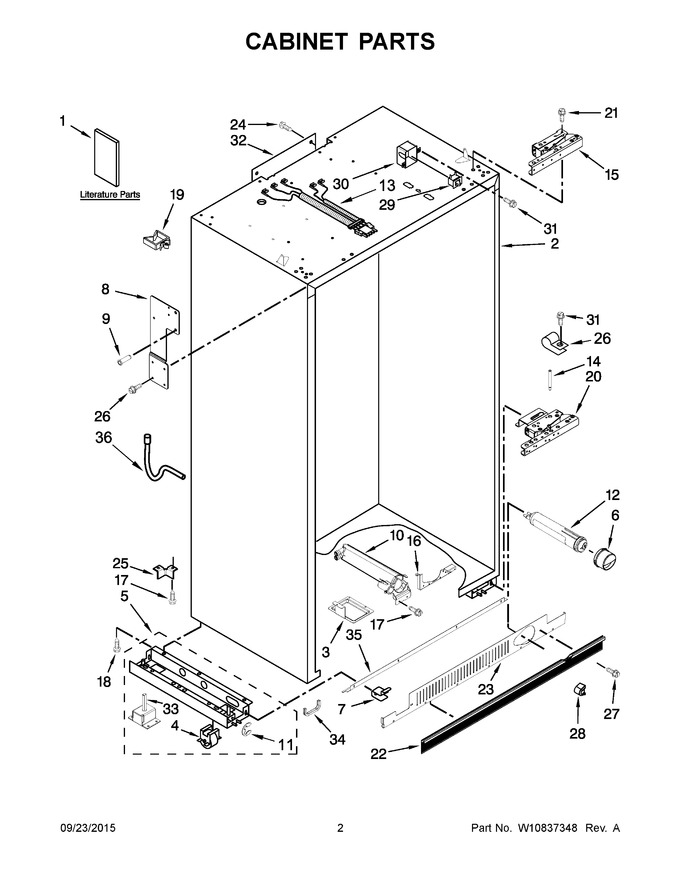

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10779525 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | 2318189 | Tray, Filter Drip |
|
$ 133.86 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 40.81 | |||||
| 5 | W10860229 | Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
$ 343.65 | |||||
| 6 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 45.61 | ||||
| 7 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 38.93 | |||||
| 8 | W11042558 | Support, Grille Left Hand (grey) (Replaces: W10714143) |
|
$ 85.68 | |||||
| 9 | WPW10121451 | Insert, Blind Threaded (Replaces: W10121451) |
|
Immediately | $ 7.23 | ||||
| 10 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 243.77 | ||||
| 11 | 2006841 | Ring, Retainer |
|
$ 83.39 | |||||
| 12 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 13 | W10780215 | Assembly, Light Switch Wire |
|
- | |||||
| 14 | W10234202 | Pin, Door Stop |
|
$ 82.56 | |||||
| 15 | W10691145 | Hinge (top) Left Hand (grey) |
|
Immediately | $ 425.23 | ||||
| 16 | W11755873 | Bracket, Filter (Replaces: W10674648) |
|
$ 72.30 | |||||
| 17 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 18 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 19 | W10129069 | Clip, Wire |
|
- | |||||
| 20 | W10691533 | Hinge (bottom) Left Hand (grey) |
|
$ 562.46 | |||||
| 21 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 13.30 | ||||
| 22 | W10859915 | Skirt, Bottom Grille (Replaces: W10188551) |
|
$ 224.36 | |||||
| 23 | W11739148 | Grille, Bottom (black) (Replaces: W10182718) |
|
$ 193.13 | |||||
| 24 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 25 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 26 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 27 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 7.54 | ||||
| 28 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 68.78 | |||||
| 29 | W10606838 | Switch, Light |
|
$ 57.61 | |||||
| 30 | W10167387 | Cover, Switch (left Hand) |
|
$ 69.82 | |||||
| 31 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 10.68 | ||||
| 32 | 2215612 | Cover, Air Duct |
|
- | |||||
| 33 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 180.06 | ||||
| 34 | 2307584 | Grommet, Crossover Tube |
|
$ 21.06 | |||||
| 35 | W10740171 | Trim, Top Grille |
|
$ 167.48 | |||||
| 36 | 2314064 | Tube, Drain |
|
$ 84.49 | |||||
| 15A | W11700299 | Hinge (top) Right Hand (grey) (Replaces: W10691136) |
|
Immediately | $ 457.16 | ||||
| 1A | W10785751 | Energy Guide |
|
- | |||||
| 1B | W10785744 | Tech Sheet (english) |
|
- | |||||
| 1C | W10785745 | Tech Sheet (french) |
|
- | |||||
| 1D | W10779523 | Installation Instructions |
|
- | |||||
| 20A | W10691534 | Hinge (bottom) Right Hand (grey) |
|
Immediately | $ 589.72 | ||||
| 30A | W10167341 | Cover, Switch (right Hand) |
|
$ 69.38 | |||||
| 5A | W10860448 | Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
Immediately | $ 344.70 | ||||
| 8A | W11042559 | Support, Grille Right Hand (grey) (Replaces: W10714146) |
|
$ 87.55 |
