SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

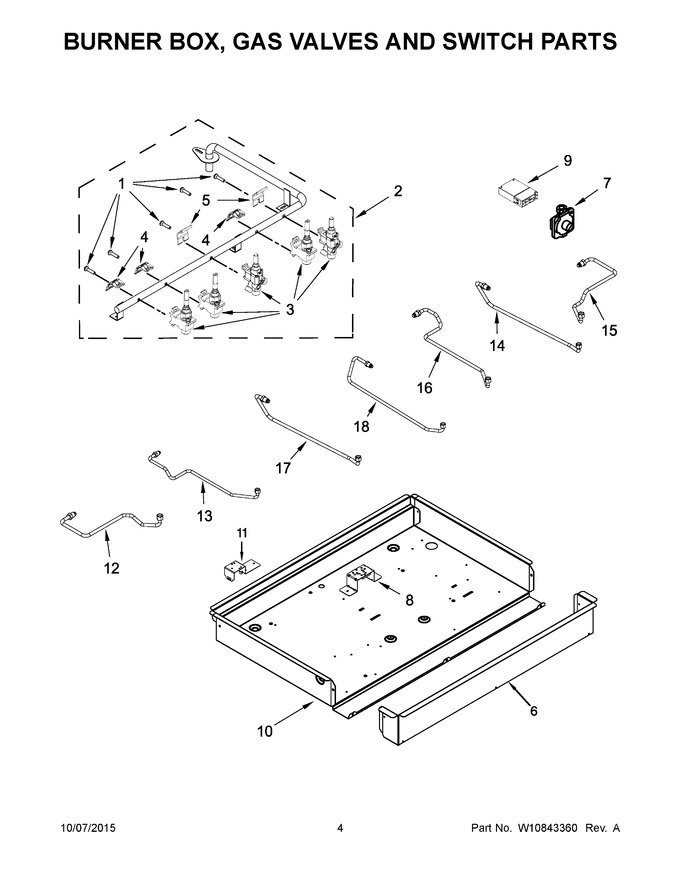

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw, Valve Bracket				$ 10.66
2	W10682075		Assembly, Manifold				$ 403.67
3	W11209791		Valve, Single (lf)   (Replaces: W10717630)			Immediately	$ 247.81
4	8287055		Bracket, Single Valve				$ 68.81
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10716840		Panel, Front   (Replaces: W10705475)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 190.26
8	W10594429		Bracket, Orifice Holder				$ 21.00
9	WPW10475150		Module, Spark   (Replaces: W10475150)			Immediately	$ 286.74
10	W10710917		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 20.25
12	W10545796		Tubing, Gas Burner (left Front)				$ 74.39
13	W10545797		Tubing, Gas Burner (left Rear)				$ 73.87
14	W10545843		Tubing, Gas Burner (right Front, Main)				$ 76.36
15	W10545844		Tubing, Gas Burner (right Front, Simmer)				$ 77.23
16	W10545798		Tubing, Gas Burner (right Rear)				$ 78.62
17	W10545801		Tubing, Gas Burner (center, Main)				$ 74.87
18	W10545800		Tubing, Gas Burner (center, Simmer)				$ 74.86
3A	W10717631		Valve, Single (lr)				$ 237.18
3B	W10717628		Valve, Single (rr)				$ 237.28
3C	W11199023		Valve, Dual (rf And Center)   (Replaces: W10717629)			Immediately	$ 140.95
NI	W10853432		Kit, Lp Conversion   (Replaces: W10676662)				$ 77.91
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10577591		Harness, Main				$ 87.26
NI	W11804917		Harness, Switch   (Replaces: W10619020)			Immediately	$ 561.81
NI	W10392003		Cord, Power				$ 145.50
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	WP74001380		Seal, Manifold Pipe Inlet   (Replaces: 7208P024-60)				$ 61.86

    View Diagram in Separate Window       Print Part List
