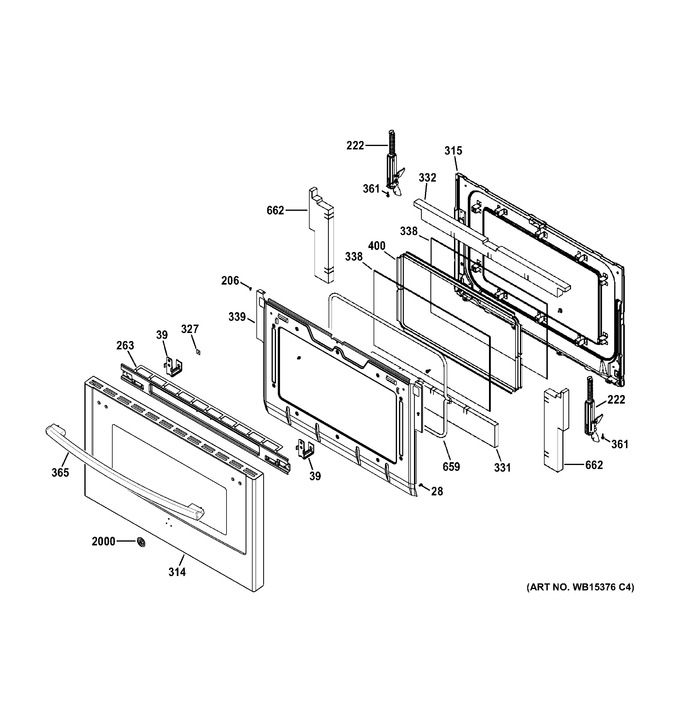

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 28 | WB1K50 | Screw Mtg Igniter |
|
- | |||||
| 39 | WB02X20520 | Bracket Handle |
|
- | |||||
| 206 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 11.44 | ||||
| 222 | WB10X20797 | Hinge Door Lt |
|
- | |||||
| 222 | WB10X20798 | Hinge Door Rt |
|
- | |||||
| 263 | WB56X20799 | Backer |
|
- | |||||
| 314 | WB56X20501 | Glass & Panel Door Asm |
|
- | |||||
| 315 | WB55K10080 | Liner Door Weld Assembly |
|
- | |||||
| 327 | WS01A01047 | Speednut (Replaces: WB1K2) |
|
$ 3.57 | |||||
| 331 | WB35X23840 | Insulation Door |
|
- | |||||
| 332 | WB35X23841 | Insulation Door |
|
- | |||||
| 338 | WB57K10155 | Crystal Window |
|
$ 47.93 | |||||
| 339 | WB56K10079 | Guard Insulation |
|
- | |||||
| 361 | WB1K31 | Screw 10-16 Pl Pnt 2.5 S |
|
- | |||||
| 365 | WB15X21772 | Handle (wh) |
|
- | |||||
| 400 | WB36K10986 | Frame Window Pack Asm |
|
- | |||||
| 659 | WB35X21685 | Cord Fiber Glass |
|
- | |||||
| 662 | WB35X23839 | Insulation Door |
|
- | |||||
| 2000 | WB02T10589X | Ge Badge Gray |
|
- |
