1 - Gas & Burner Parts


2 - Control Panel & Cooktop


3 - Body Parts


4 - Upper Oven


5 - Lower Oven


6 - Upper Door


7 - Lower Door

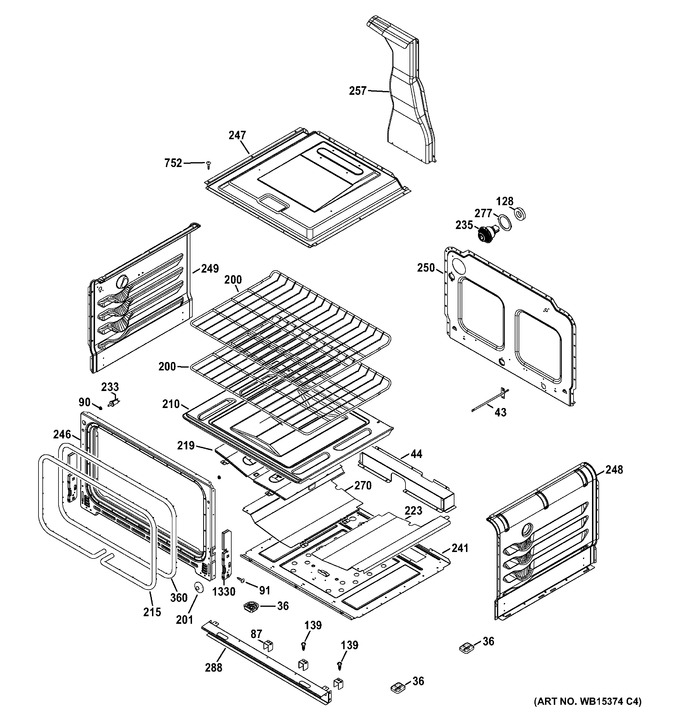

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
36	WB16X20450		Spacer Base		Appelez-nous	-
43	WS01F02432		Temperature Sensor   (Replaces: WB20K10027)			Immediately	$ 21.82
44	WB34X20526		Cover Shutter		Appelez-nous	-
87	WB56X20457		Barrier Bottom Floor		Appelez-nous	-
90	WB02K10330		Bumper Door		Appelez-nous	-
91	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
128	WB02K10349		Lamp Insulation		Appelez-nous	-
139	WB01K10030		Screw		Appelez-nous	-
200	WB48X20783		Oven Rack		Appelez-nous	-
201	WB02X20849		Spacer Side		Appelez-nous	-
210	WB34X21670		Bottom Oven		Appelez-nous	-
215	WB32K10046		Gasket Oven Lower Cavity		Appelez-nous	-
219	WB34X20440		Deflector Oven		Appelez-nous	-
223	WB34X20444		Oven Deflector		Appelez-nous	-
233	WB24X20445		Plunger Switch Dual		Appelez-nous	-
235	WG02F01227		Oven Lamp Holder Asm   (Replaces: WB08T10002)				$ 57.24
241	WB63X20441		Bottom Range		Appelez-nous	-
246	WB63X20432		Frame Weld Asm		Appelez-nous	-
247	WB53K10039		Oven Top		Appelez-nous	-
248	WB53K10041		Oven Side		Appelez-nous	-
249	WB63X20427		Side Oven		Appelez-nous	-
250	WB63X21539		Oven Back		Appelez-nous	-
257	WB34X20439		Vent Lower Asm		Appelez-nous	-
270	WB34X20443		Oven Deflector		Appelez-nous	-
277	WS01L07527		Gasket Oven Light   (Replaces: WB32K10044)				$ 3.57
288	WB02X20414		Brace		Appelez-nous	-
360	WB63X21664		Gasket Drawer Asm		Appelez-nous	-
752	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
1330	WS01L00579		Receiver Hinge   (Replaces: WB10K10029)				$ 10.01

    View Diagram in Separate Window       Print Part List
