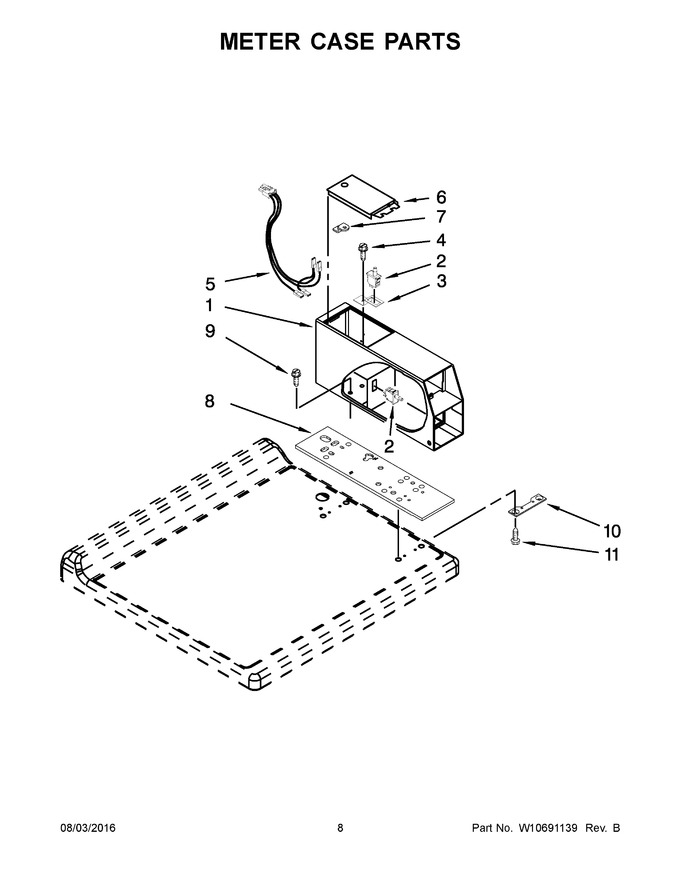

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10171128		Meter Case   (Replaces: W10171128)				$ 323.44
2	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 22.60
3	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
4	WPW10139210		Screw   (Replaces: W10139210)				$ 7.23
5	W11096090		Wire, Harness Sensor Switch   (Replaces: W10211244)				$ 12.06
6	W11283272		Assembly, Service Door   (Replaces: 3351136)				$ 100.05
7	W11401086		Cam, Commercial Lock   (Replaces: W10145154)				$ 6.17
8	W10137448		Cushion, Meter Case		Appelez-nous	-
9	W11715721		Bolt   (Replaces: 3349065)				$ 6.73
10	3347825		Plate, Mounting		Appelez-nous	-
11	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
