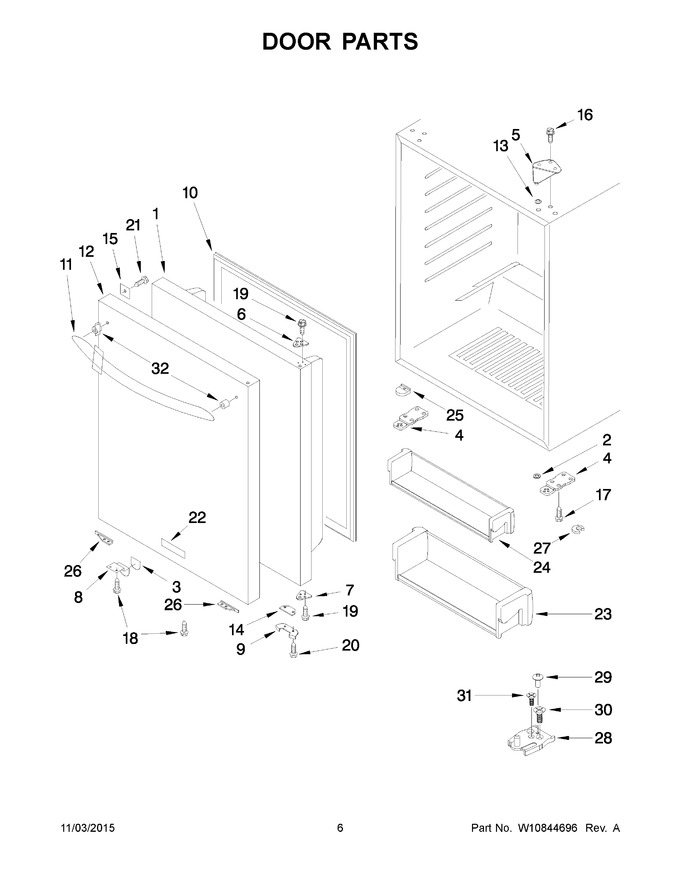

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319114		Door Assembly		Appelez-nous	-
2	W11241702		Washer   (Replaces: W10162992)				$ 12.84
3	W10163191		Label				$ 14.85
4	W10319152		Hinge, Bottom Mount - Rh		Appelez-nous	-
5	W10319150		Hinge, Top		Appelez-nous	-
6	4344755		Spacer, Top Hinge				$ 18.03
7	4344756		Spacer, Bottom Hinge				$ 18.63
8	4344757		Actuator, Switch				$ 138.67
9	4344758		Door Stop		Appelez-nous	-
10	WPW10238068		Door Gasket   (Replaces: 4344852)				$ 312.31
11	W10841194		Handle, Door		Appelez-nous	-
12	W10922160		Door Wrap (stainless Steel)   (Replaces: W10841203)		Appelez-nous	-
13	4344760		Washer				$ 14.32
14	4344788		Spacer, Door				$ 154.23
15	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 15.65
16	4344796		Screw				$ 15.14
17	4344797		Screw		Appelez-nous	-
18	W10837731		Screw   (Replaces: W10204865)				$ 7.47
19	W10243123		Screw   (Replaces: W10797377)				$ 15.14
20	4344801		Screw				$ 15.14
21	W10319188		Screw, Handle		Appelez-nous	-
22	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 71.60
23	W10319175		Door Bin, Lower		Appelez-nous	-
24	W10319176		Door Bin, Middle		Appelez-nous	-
25	W10319155		Hinge Cover		Appelez-nous	-
26	W10319168		Door Corner (rubber, Lh)		Appelez-nous	-
27	W10239396		Lock Washer		Appelez-nous	-
28	W10319154		Hinge, Bottom		Appelez-nous	-
29	W10319187		Screw				$ 66.16
30	W10162988		Screw		Appelez-nous	-
31	W10319185		Screw		Appelez-nous	-
32	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 17.40
26A	W10319169		Door Corner (rubber, Rh)		Appelez-nous	-
4A	W10319153		Hinge, Bottom Mount - Lh		Appelez-nous	-
NI	8171420		Cleaner		Appelez-nous	-
